How Should Chilled Water Pipe Supports Be Insulated to Prevent Condensation?

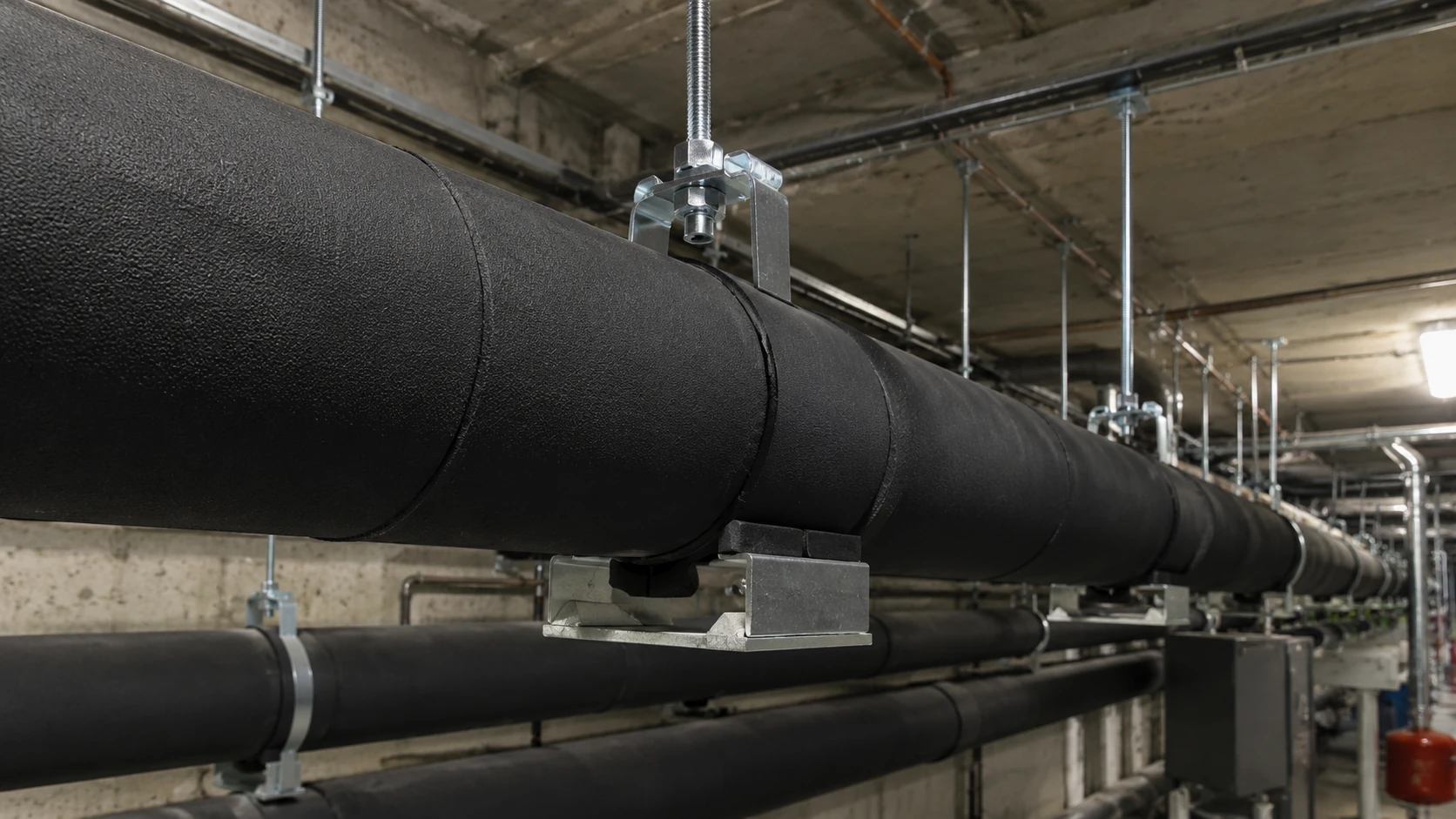

A chilled water pipe support has to do more than hold the pipe in position. It must carry the operating load without reducing the insulation thickness, limit heat transfer between the cold pipe and exposed support metal, and connect cleanly to the insulation on both sides.

When one of those functions is missing, the support becomes a local weak point. Its exposed surface may fall below the surrounding air’s dew point even while the rest of the pipe remains dry. For a wider review of condensation patterns, see why chilled water pipe insulation sweats.

Why Chilled Water Pipe Supports Are Common Condensation Points

Along a straight pipe run, the insulation thickness and heat-transfer path are reasonably uniform. A support interrupts that arrangement. The weight of the pipe and water is concentrated over a short section, while clamps, saddles, hanger rods and structural steel are introduced around the cold pipe.

Condensation can begin at the support when:

• The hanger or clamp is in direct contact with the chilled pipe.
• The support reduces the insulation thickness at the load point.
• The insulated insert provides too little thermal resistance for the operating conditions.
• A gap remains between the support insert and the adjoining pipe insulation.
• The vapor seal stops at the support instead of continuing through it.
• A shield, saddle or clamp cuts into the insulation as the pipe moves.
• Bolts, rods, brackets or other metal components bypass the insulated section.

Water may first form on the clamp or hanger and then run across the nearby insulation. By the time it is noticed, a small support defect can look like a much larger failure along the pipe.

What an Insulated Chilled Water Pipe Support Must Do

A cold pipe support is both a structural detail and an insulation detail. Treating those two functions separately is where many site problems begin.

Carry the Pipe Load Without Reducing Insulation Thickness

The support has to carry the pipe, the fluid inside it and any additional movement or operating loads. That load should pass through an insulated support insert or support system designed for the application.

Standard flexible pipe insulation should not automatically be treated as the load-bearing part of the assembly. If it is squeezed under the pipe, the effective thickness falls at the exact location where thermal protection is most difficult to maintain.

The required insert length and load-bearing capacity depend on the pipe material, outside diameter, fluid weight, support spacing, hanger type, movement conditions and project design factors.

Interrupt the Conductive Path to the Support Metal

The support arrangement needs a thermal break between the chilled pipe and the hanger, clamp, saddle or support steel. Otherwise, the metal can carry heat directly toward the pipe and expose a cold surface outside the insulation system.

A shield or saddle helps spread the load and protects the insulation from sharp edges. It does not, by itself, remove a thermal bridge. The insulation insert beneath it still has to separate the pipe from the metal support.

Anchors, guides and movement restraints need separate attention. Their metal components often pass through the normal insulation line, so the thermal and structural details have to be resolved together.

Maintain Thermal Continuity Through the Support

The supported section should provide thermal resistance compatible with the insulation on the adjoining pipe. An insert that is thinner or less suitable for cold service can create a small cold spot even when every visible joint appears closed.

Insert thickness, outside dimensions, pipe insulation thickness and saddle size should be coordinated before installation. Trying to correct a mismatched support by wrapping extra material around the outside rarely restores the original thermal path.

Keep Humid Air Away from the Cold Pipe

On below-ambient piping, a support can remain dry only when the insulation and sealed joints prevent humid air from reaching cold surfaces inside the assembly.

The butt joints between the support insert and the adjoining pipe insulation should close without gaps or tension. Where the system includes an additional facing, coating or jacket, that protective layer also has to continue across the support transition.

External tape cannot compensate for missing insulation beneath it. A joint must fit first; sealing and finishing come afterward.

Typical Support Arrangements and What to Check

Nominal pipe diameter is not enough to select a support. The actual pipe load, insulation thickness, operating temperature, expected movement and installation environment all affect the finished assembly.

How to Insulate Chilled Water Pipe Supports

1. Resolve the Support Detail Before the Pipe Is Loaded

The mechanical drawings and insulation specification should identify the hanger type, insulation thickness, load-bearing insert, vapor-seal treatment and any required shield, coating or jacket.

Resolve these dimensions before the pipe is placed on the support. Once the hanger is carrying a filled pipe, correcting a mismatched insert or saddle usually means dismantling part of the assembly.

The operating environment also matters. A support in an air-conditioned plant room does not face the same dew-point risk as one above an open loading area or inside a humid service shaft. The FUNAS HVAC duct and pipe insulation solutions page covers the main application information needed when selecting insulation for chilled water and other HVAC systems.

2. Select the Insert for the Actual Load and Service Conditions

Cold-service supports may use engineered insulated support assemblies or load-bearing inserts selected for the pipe load and thermal requirement. The material name alone does not confirm that a support is suitable.

Before ordering the support components, confirm:

• Pipe outside diameter and material.
• Chilled water supply, return and shutdown temperatures.
• Combined weight of the pipe and fluid.
• Support spacing and hanger arrangement.
• Required insulation thickness.
• Expected pipe movement, vibration or expansion.
• Indoor, outdoor, concealed or plant-room installation.
• Required fire-performance and technical documents.
• Facing, coating or external jacket requirements.

A large pipe with a short bearing length may place much more pressure on an insert than a smaller pipe supported over a longer saddle. That is why the straight pipe insulation schedule cannot be used as the only support selection document.

3. Check the Fit Before Closing the Hanger

The insert should sit firmly around the pipe without rocking, excessive clearance or forced deformation. Its outside surface should line up with the adjoining pipe insulation.

An undersized insert can be forced out of shape when the clamp is tightened. An oversized insert may leave gaps around the pipe or prevent the hanger from closing. Both problems tend to produce improvised site cuts that are difficult to seal later.

Check the pipe outside diameter rather than relying only on its nominal size. Coatings, pipe schedules and different material types can change the actual dimension that the insert has to fit.

4. Centre the Shield or Saddle Under the Load

The shield or saddle should spread the load across the intended bearing area. If it shifts to one side, the edge can press into the insulation and create a narrow cold line beside the support.

Sharp edges should not touch flexible insulation. The saddle also needs enough length for the expected movement of the pipe. A support that looks acceptable before commissioning may begin cutting into the insulation after repeated expansion, contraction or vibration.

5. Join the Pipe Insulation to the Support Insert

Cut the adjoining insulation so that it meets both ends of the support insert without stretching. Pulling a short tube along the pipe to close a gap puts the butt joint under constant tension. It may look closed during installation and open after the system starts.

Both joint faces should be clean, dry and accurately cut. Bond or seal them using materials compatible with the selected insulation system.

Where tape forms part of the specified finish, apply it only after the joint has been fitted and sealed. Do not use tape to span a hidden cavity or hold a poorly fitted insert in position.

For the straight pipe sections on either side of the support, FUNAS NBR rubber foam pipe insulation is available in multiple pipe diameter and thickness combinations. The load-bearing insert, shield and hanger assembly should be selected separately according to the approved support detail.

6. Restore the Facing, Coating or Jacket

If the pipe insulation uses an additional facing, coating or external jacket, finish the support as part of the same system. Open edges, loose overlaps and unsealed penetrations provide a route for humid air and water.

Fasteners should not be driven through the cold insulation zone unless the approved design specifically allows them. Outdoor and semi-outdoor supports also need protection from rain, sunlight and mechanical damage.

Arrange weather protection so that water drains away from the support. A jacket that traps water around the saddle can create a second moisture problem even when the insulation joints beneath it are sealed.

7. Inspect Every Support Before Commissioning

Support inspections are easier while the pipe is dry and accessible. Once chilled water begins circulating, condensation may wet the joint faces and make a permanent adhesive repair difficult.

Before start-up, check that:

• No hanger, clamp or bracket has uncontrolled direct contact with the chilled pipe.
• The insulated insert has not shifted, split or been forced out of shape.
• The insert type, thickness and outside dimensions match the approved support detail.
• The joints on both sides of the support are fully closed and sealed.
• The shield is centred beneath the load-bearing section.
• No sharp metal edge is cutting into the adjoining insulation.
• Facings, coatings and jackets are complete around the support.
• Rods, brackets and penetrations are finished according to the approved detail.
• Supports above ceilings and inside shafts are inspected before access is closed.

Who Is Responsible for the Support Insulation Detail?

Pipe support failures often begin in the gap between trades. The mechanical contractor installs the hanger, the insulation contractor arrives later, and neither package clearly includes the load-bearing insert or sealed transition.

The design team should define the structural and thermal requirements. The mechanical contractor should coordinate the pipe load, hanger and movement conditions. The support supplier should confirm the load-bearing assembly, while the insulation contractor completes the adjoining insulation and sealed joints.

Those responsibilities need to be agreed before procurement. Leaving the detail unresolved until the pipe is already hanging usually leads to mismatched inserts, reduced insulation thickness or field-built patches that cannot be inspected properly.

Common Problems Found After Commissioning

Some support defects are part of a wider installation pattern. Open seams, stretched material, damaged fitting covers and premature start-up are covered in rubber foam installation mistakes that cause condensation.

How to Repair a Condensing Pipe Support

A sweating support has to be opened far enough to expose the actual cold bridge or failed joint. Surface patching may hide the water temporarily, but it leaves the defective detail underneath.

1. Confirm that the water is condensation rather than leakage from the pipe, valve, roof or drainage system.
2. Record the chilled water temperature, ambient temperature and relative humidity near the support.
3. Trace the moisture pattern before removing material.
4. Open enough of the support area to inspect the pipe, insert, joints, shield and hanger contact points.
5. Remove insulation that is wet, damaged, distorted or no longer bonded.
6. Inspect the pipe surface and support components for corrosion or mechanical damage.
7. Correct the load-bearing and thermal detail rather than rebuilding the same failed arrangement.
8. Install the adjoining insulation without stretching or leaving gaps.
9. Seal the butt joints and restore the specified coating, facing or jacket.
10. Inspect the repair while the system is operating under representative humidity conditions.

Do not bond new material over active condensation. The pipe and adjoining surfaces must be dry enough for the repair system to form a durable joint.

Where anchors, guides, corrosion, pipe movement or structural loading are involved, the responsible mechanical or structural professional should review the repair. Replacing insulation alone may not correct the cause.

Information Buyers Should Provide for Supported Pipework

A request that lists only the nominal pipe diameter and total length is not enough to coordinate support locations. Include the support information while the material schedule and quotation are still being prepared.

• Pipe material, outside diameter and schedule where relevant.
• Chilled water supply and return temperatures.
• Maximum ambient temperature and relative humidity.
• Required insulation material and thickness.
• Total pipe length for each diameter.
• Number and type of hangers, clamps, guides and anchors.
• Support spacing and available bearing length.
• Required facing, coating or external jacket.
• Indoor, outdoor, concealed or semi-outdoor location.
• Required product data and fire-test documents.
• Quantity, packaging requirements and project destination.
• Sample or mock-up requirements before bulk installation.

A support schedule or marked-up drawing is more useful than a general note stating that supports must be insulated. It lets the designer, contractor and suppliers check the interfaces before the material reaches the site.
