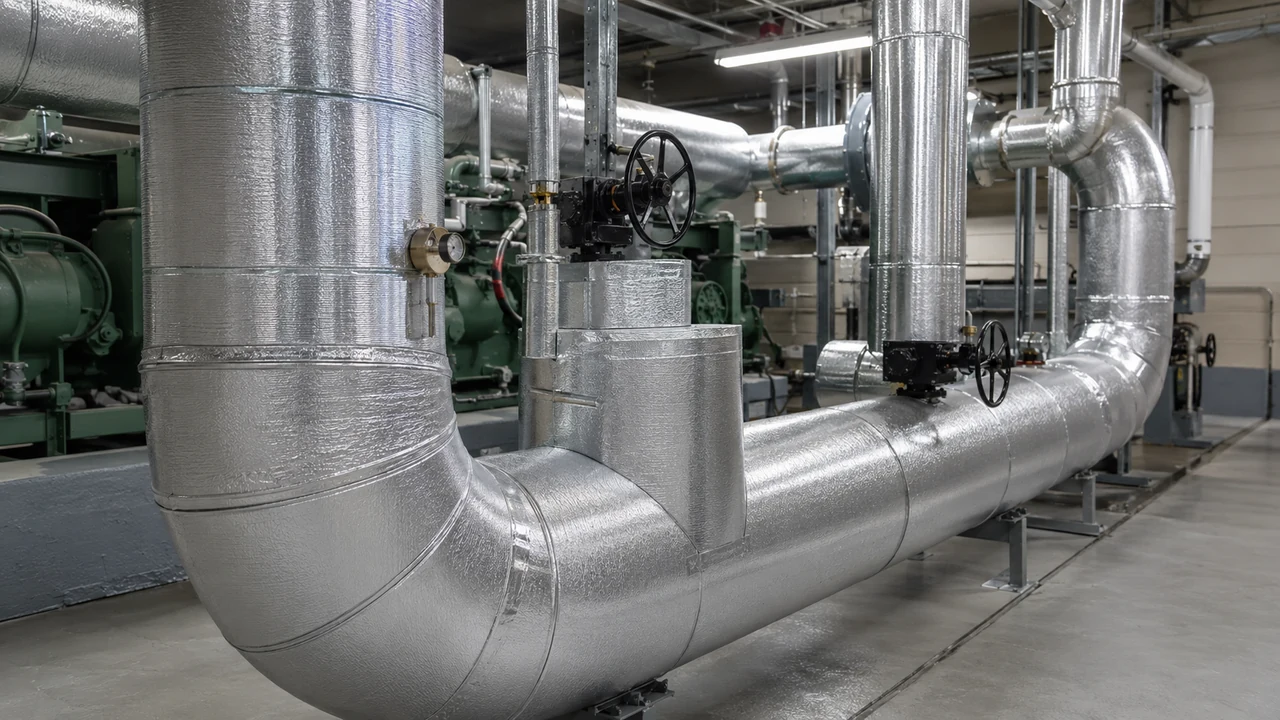

How Surface Emissivity Affects Condensation Calculations for Foil-Faced Elastomeric Insulation

For below-ambient HVAC and refrigeration systems, condensation control depends on keeping the final exposed insulation surface above the surrounding air's dew-point temperature. Insulation thickness and thermal conductivity are central to that calculation, but they are not the only inputs. The condition of the finished outer surface also affects heat transfer between the insulation system and its surroundings.

This becomes relevant when a project changes from plain elastomeric insulation to an aluminum foil-faced construction. Even if the base foam and nominal insulation thickness remain unchanged, the finished surface is different. That change should be represented in the engineering calculation rather than assuming the original condensation result automatically remains valid.

Why the Finished Surface Matters in a Condensation Calculation

Surface condensation occurs when the temperature of the final exposed surface reaches or falls below the local dew point. For an insulated cold pipe, duct or equipment surface, the temperature that matters is therefore the temperature of the outside of the completed insulation system.

It is not the fluid temperature, pipe-wall temperature or the temperature of the elastomeric foam underneath a facing.

Heat reaching a below-ambient system passes through several stages:

1. Heat is transferred from the surrounding environment to the exposed insulation surface.
2. External heat transfer occurs through both convection and radiation.
3. Heat then conducts through the insulation layer.
4. It continues through the pipe, duct or equipment wall toward the colder medium.

The elastomeric insulation primarily controls the conductive part of this heat path. The exposed surface affects the external boundary condition, including radiant heat exchange with the surrounding environment.

This is why engineering calculation methods consider more than insulation thickness alone. ASTM C680 surface-temperature calculation practice, for example, identifies jacket emittance, ambient conditions, wind velocity, geometry, insulation properties and other inputs as factors that can influence calculated insulation-system surface temperatures. ASTM C680 is an industry calculation reference and should not be interpreted as a product certification.

What Changes When Elastomeric Insulation Is Foil-Faced?

Adding aluminum foil facing does not necessarily change the underlying elastomeric foam. What changes is the final surface exposed to the surrounding environment.

The facing can also serve other project functions, such as providing a finished exterior or an additional protective surface. Those functions should be considered separately from its effect on surface heat transfer. For a broader discussion of facing selection and exposure conditions, see when elastomeric insulation needs aluminum foil facing.

Surface Emissivity Is Not the Same as Other Insulation Properties

Several terms are sometimes mixed together when foil-faced insulation is specified. They describe different properties and should not be substituted for one another.

• Surface emissivity or emittance relates to thermal radiation from the finished surface.
• Thermal conductivity describes heat transfer through the insulation material.
• Vapor permeance or permeability relates to water-vapor transmission.
• Solar reflectance and solar absorptance relate to how a surface responds to incident solar radiation.
• Mechanical protection relates to resistance to handling and physical exposure.
• Fire performance must be evaluated using the applicable test data for the product or construction being specified.

A metallic appearance therefore does not, by itself, provide enough information for a condensation calculation.

How Surface Emissivity Changes the Calculated Surface Temperature

A cold insulation surface receives heat from its surroundings. Some of this heat arrives through convection from the surrounding air, while another portion is exchanged by thermal radiation with surrounding surfaces.

Changing the finished surface emissivity changes the radiative part of that heat-transfer condition. Under otherwise identical below-ambient conditions, a lower-emissivity metallic surface can receive less radiant heat from its surroundings than a higher-emissivity surface. The resulting calculated outer-surface temperature can therefore be different even when the insulation material and nominal thickness have not changed.

This does not mean that aluminum foil facing automatically causes condensation, nor does it mean that every faced system requires a greater insulation thickness. The outcome depends on the complete set of design conditions.

The National Insulation Association discussion of surface condensation factors also identifies jacket emittance together with insulation thermal conductivity, system geometry and environmental conditions when evaluating condensation risk on mechanical insulation systems.

Radiation and Convection Must Be Considered Together

Emissivity should not be evaluated in isolation. External surface heat transfer also depends on convection, and convection changes with the environment around the insulation.

Relevant conditions may include:

• Natural or forced air movement
• Indoor, sheltered or outdoor installation
• Wind exposure
• Pipe, duct or equipment geometry
• Surface orientation
• Ambient dry-bulb temperature
• Relative humidity and resulting dew point

A surface-emissivity value therefore cannot be used to select insulation thickness without the rest of the project inputs.

Same Foam and Thickness, Different Finished Surface

Consider two constructions without assigning project-specific numbers.

The calculation may produce a different external surface temperature because one of the boundary conditions has changed. The relevant engineering question is therefore not simply whether foil is present, but whether the completed insulation system still maintains the required surface-temperature margin under the project's design conditions.

When Should a Facing Change Be Checked Again?

A new condensation calculation or engineering review is particularly relevant when the surface used in the original design no longer represents the final installed construction.

Typical situations include:

• Plain elastomeric insulation is replaced by a foil-faced configuration.
• The specified foil or laminate construction is changed.
• A coating, painted finish or separate jacket is added over the insulation.
• The approved calculation assumed a different finished surface from the material supplied to site.
• An indoor installation is moved to a location with substantially different environmental exposure.
• Design temperature, relative humidity or air movement changes.
• The insulation thickness was originally selected using surface properties from another construction.

The objective is not to recalculate a system simply because a facing exists. It is to make sure the inputs used for approval match the construction that will actually be installed.

What Inputs Should Be Confirmed Before Thickness Verification?

For a meaningful condensation check, engineers and suppliers need more than a requested thickness. The following information helps define the calculation.

For projects where thickness selection itself is still being determined, the FUNAS guide to insulation thickness for condensation control covers the wider set of temperature, humidity, geometry and operating inputs that should be reviewed.

Common Specification Mistakes With Foil-Faced Cold Insulation

Using Bare-Foam Surface Data for the Finished Faced System

If the final exposed surface is a foil laminate, the surface condition used in the calculation should represent that finished construction rather than the foam hidden below it.

Using One Generic Emissivity Value for Every Aluminum Facing

Specifications such as “aluminum foil surface” do not necessarily define one universal surface-emittance value. Foil, laminate, coating, surface finish and other construction details can differ between products.

If surface emittance is an input to the project calculation, use data applicable to the actual construction or an engineering value accepted by the project designer. A value copied from an unrelated product should not automatically be applied.

Treating Thin Foil as Additional Insulation Thickness

The main thermal resistance in a foil-faced elastomeric system comes from the insulation layer. A thin facing should not be counted as meaningful additional conductive insulation unless verified product data and the project's accepted calculation method specifically support that treatment.

Likewise, adding foil should not be used as a reason to reduce the specified elastomeric thickness without recalculating the completed construction.

Confusing Surface Condensation With Vapor-Control Performance

Surface condensation and moisture entry into an insulation system are related design concerns, but they are not the same failure mechanism.

• Surface condensation occurs when the finished outer surface reaches the local dew point.
• Vapor diffusion concerns water-vapor transmission through materials.
• Air or vapor leakage can occur through poorly sealed joints, seams and penetrations.
• Local condensation can occur where insulation continuity is lost at supports, valves, fittings or exposed cold surfaces.

A project can therefore have an acceptable insulation thickness calculation and still develop local problems if the installed system is discontinuous.

How to Specify Foil-Faced Elastomeric Insulation for a Cold HVAC System

The specification should describe the complete construction rather than simply stating “foil-faced insulation.”

Useful specification information includes:

• Base elastomeric insulation type and required grade
• Pipe, sheet or roll format
• Required insulation thickness
• Facing material and construction
• Plain or self-adhesive backing where applicable
• Indoor, sheltered or outdoor installation
• Operating and ambient design conditions
• Required fire-performance documents
• Required thermal or project-submittal documents

A project specification may also require condensation calculations to use the surface emittance of the actual finished facing or jacketing construction. Final wording and calculation criteria should be reviewed by the project engineer or consultant rather than copied between projects with different operating conditions.

What Should Buyers Include in an RFQ?

For procurement, separating the insulation requirement from the facing requirement makes quotations easier to compare. Two suppliers may both quote “foil-faced rubber foam” while referring to different insulation dimensions, facing constructions or backing arrangements.

FUNAS offers NBR/PVC rubber foam pipe insulation with aluminum foil-faced options for mechanical piping, as well as aluminum-faced rubber foam sheet for applications such as HVAC ducts, larger pipes and equipment surfaces. The required configuration should be confirmed against the actual project specification before ordering.

Do Installation Details Still Matter After the Thickness Is Verified?

Yes. A correct straight-section calculation does not eliminate local condensation risks created by installation discontinuities. Longitudinal seams, butt joints, elbows, valves, flanges, supports, hangers and penetrations need the insulation and vapor-control system to remain continuous around the cold surface.

Large pipes and field-fabricated sheet systems require particular attention because they introduce more joints and transitions than a straight preformed tube. The FUNAS guide to large-diameter chilled-water pipe insulation covers these fabrication and continuity issues in more detail.

The facing should therefore be considered one part of the completed insulation system. It cannot compensate for exposed pipe surfaces, unsealed joints or discontinuities at supports and fittings.
