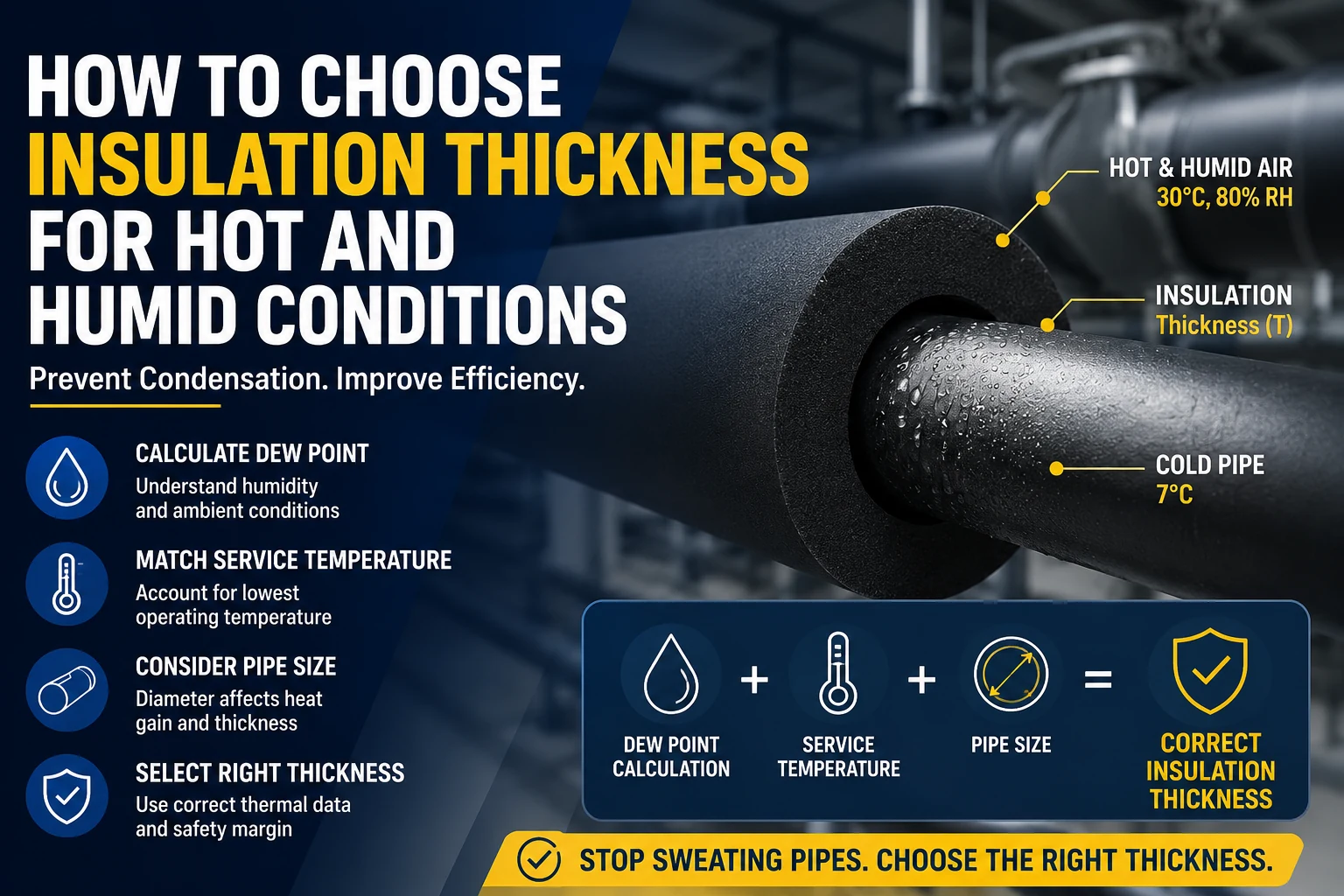

How to Choose Insulation Thickness for Hot and Humid Conditions

Choosing insulation thickness for hot and humid conditions is mainly a condensation-control problem. A thickness that limits heat gain under moderate indoor conditions may still allow sweating when the same pipe is installed in a humid ceiling void, an open mechanical room or a semi-outdoor service area.

The correct thickness depends on the cold service temperature, surrounding air temperature, relative humidity, pipe or duct dimensions, insulation thermal conductivity and installation details. It should not be selected from climate labels, pipe diameter alone or the most commonly stocked thickness.

This guide focuses on cold HVAC and refrigeration applications where the insulation surface must remain above the surrounding air’s dew point. For a broader comparison of product form, grade, facing and application, see the rubber foam HVAC selection guide.

What Must the Insulation Thickness Achieve?

Cold-service insulation normally has two separate design objectives:

• Limit heat gain into the chilled pipe, duct or equipment.
• Keep the exposed insulation surface warm enough to prevent condensation.

The thickness required for condensation control may be greater than the thickness required only for energy performance. The project should therefore calculate both requirements and use the more demanding result, together with any specified design margin.

For condensation control, the critical condition is simple: the outer insulation surface must remain above the design dew point. If the calculated surface temperature falls below that level, moisture can form even when the insulation still reduces heat transfer.

Why Standard Thickness Rules Are Risky in Humid Conditions

Rules such as “use one thickness for small pipes and another for large pipes” can be useful for early estimating, but they are not a substitute for a project calculation. The same insulation thickness can perform differently under different operating and ambient conditions.

A project operating in stable conditioned air may tolerate a different thickness from the same system installed in a humid plant room. The material, pipe size and water temperature may be identical, but the surrounding dew point is not.

What Information Is Needed Before Selecting Thickness?

A reliable thickness calculation begins with project data. Using assumptions where site information is available can produce either an undersized system or unnecessary material cost.

Project teams may use a method required by the consultant, applicable local regulations, ISO 12241, the ASHRAE Handbook or another approved engineering calculation basis. These are industry design references and should not be confused with certification of a particular insulation product.

Step 1: Establish the Worst Credible Ambient Condition

The design condition should represent the air surrounding the insulation, not a distant weather station or the temperature shown on a room controller.

Hot and humid conditions commonly occur in:

• Unconditioned ceiling voids and service shafts.
• Mechanical rooms with outdoor air infiltration.
• Loading areas and spaces with frequently opened doors.
• Partially enclosed rooftops and equipment platforms.
• Food processing and refrigeration facilities.
• Industrial buildings with moisture-generating processes.
• Buildings during construction before humidity control is operational.

When several operating environments are possible, calculate each condition or use the most demanding credible combination. Using an annual average temperature and humidity can hide the short periods when condensation is most likely.

Step 2: Determine the Design Dew Point

Dew point is determined by the surrounding air temperature and relative humidity. It represents the temperature at which water vapor begins to condense.

In hot and humid air, the dew point can be close to the ambient temperature. This leaves a smaller margin for the insulation surface. A modest reduction in surface temperature may therefore be enough to cause sweating.

The calculation should use temperature and humidity values that can occur at the same time. Combining the highest temperature from one period with the highest humidity from another may create an unrealistic condition, while relying on average values may underestimate the actual risk.

Step 3: Confirm the Lowest Operating Temperature

For chilled water, refrigeration and cold-process piping, the normal operating temperature is not always the lowest temperature the insulation will experience.

Check:

• Design supply and return temperatures.
• Minimum setpoint during part-load operation.
• Start-up and commissioning conditions.
• Temporary process temperatures.
• Future changes to the cooling system.
• Different temperatures on branches or equipment connections.

If the system may later operate colder than the original design assumption, a thickness selected only for the current setpoint can become inadequate.

Step 4: Use Thermal Data for the Exact Insulation Product

Thickness calculations should use thermal conductivity data for the exact insulation type and selected grade. A value copied from another brand, another density or a different test temperature may not represent the material being ordered.

Thermal conductivity also changes with temperature. The calculation method may require a value at the mean operating temperature or a temperature-specific value from the technical data.

When reviewing the FUNAS rubber foam insulation range, buyers should request the relevant technical document for the selected sheet or pipe grade rather than applying one catalogue value to every product option.

Step 5: Calculate the Minimum Thickness for Condensation Control

The calculation should determine the minimum thickness required to keep the outer insulation surface above the design dew point under the selected conditions.

The result depends on:

• Cold service temperature.
• Ambient temperature and relative humidity.
• Pipe diameter or equipment geometry.
• Insulation thermal conductivity.
• Surface emissivity.
• Air movement around the surface.

The calculated minimum is not automatically the thickness that should be ordered. Engineers should review calculation tolerance, operating variation, product availability and installation risk before confirming the specification.

Step 6: Apply a Suitable Design Margin

A calculation that places the insulation surface exactly at the dew point leaves little tolerance for site conditions, material variation or installation imperfections. Projects in demanding environments may specify a surface-temperature margin above the calculated dew point.

The required margin should be determined by the engineer or project specification. It may need to account for:

• Short-term humidity peaks.
• Unexpected air infiltration.
• Minor variation in material properties.
• Changes in operating temperature.
• Measurement uncertainty.
• Limited access for future repair.

After applying the approved margin, round the result up to a suitable available thickness. Rounding down because a thinner size is easier to source defeats the purpose of the calculation.

How Temperature and Humidity Affect the Selection

The phrase “hot and humid climate” is too broad for a final thickness selection. The calculation needs a defined temperature, relative humidity and installation location.

Why Pipe Diameter Affects Insulation Thickness

Pipe diameter changes the relationship between the cold surface, the insulation layer and the exposed outer area. Two pipes carrying water at the same temperature may not require the same thickness even when they are installed in the same room.

For pipe insulation, confirm both:

• The pipe outside diameter or the required insulation inner diameter.
• The insulation wall thickness calculated for the project condition.

Preformed NBR rubber foam pipe insulation is available in multiple inner-diameter and wall-thickness combinations. Current regular wall-thickness options include 9mm, 13mm, 15mm, 20mm, 25mm and 30mm, but not every inner diameter is necessarily supplied in every thickness combination. Availability should be confirmed against the pipe schedule before ordering.

An incorrect internal diameter can also affect performance. A tube that is too small may be stretched and thinned, while an oversized tube can create loose fit and difficult seam closure.

How Thickness Selection Changes by Application

Chilled Water Pipes

Chilled water pipe insulation is usually selected for both heat-gain control and condensation prevention. Humid ceiling voids, plant rooms and service shafts can require a more demanding calculation than occupied spaces.

Pay particular attention to large mains, cold branches, valves, strainers, flanges and supports. A suitable nominal pipe thickness does not prevent condensation where the insulation is interrupted.

Refrigerant and Suction Lines

Refrigerant line temperatures can vary with equipment operation, refrigerant circuit and system load. The lowest expected surface temperature should be confirmed rather than assuming that every line operates under the same condition.

Closely spaced line sets can also restrict installation clearance and create compressed sections or poorly sealed seams.

Cold Air Ducts

Duct insulation thickness depends on air temperature, duct dimensions, surrounding humidity and whether the insulation is installed internally or externally. Large flat surfaces also require attention to sheet bonding, seam layout and sagging.

For ducts, large pipes and equipment surfaces, NBR/PVC rubber foam sheet can be supplied in several regular thicknesses, with additional specification confirmation required for the selected grade, roll size, backing and facing.

Tanks, Vessels and Cold Equipment

Large equipment surfaces may have changing curvature, access doors, nozzles, brackets and structural supports. The thickness calculation should cover the main surface, while the insulation detail should address local metal penetrations and removable sections.

Does Aluminum Foil Facing Reduce the Required Thickness?

A low-emissivity facing can affect surface heat transfer and may be included in an engineering calculation. It should not automatically be treated as a substitute for insulation thickness.

The calculation must represent the final installed surface, including the facing condition. Dust, damage, joint treatment and long-term exposure can affect how the finished surface behaves.

Aluminum foil facing may also provide surface protection or a cleaner exposed finish, depending on the project. It does not repair open insulation seams, missing material or compressed supports beneath the facing.

Why Straight-Pipe Thickness Is Not Enough

The calculated thickness usually describes a continuous insulation layer. Actual HVAC systems contain details where that continuity can be lost.

Pipe Supports and Hangers

A hanger can compress the insulation or create direct metal contact with the cold pipe. The support detail should maintain equivalent thermal resistance and joint continuity through the supported section.

Valves, Flanges and Fittings

Field-fabricated insulation around valves and fittings should maintain the specified thickness. Reducing thickness to make a cover easier to close creates a local cold spot.

Seams and Butt Joints

Open joints allow humid air to move closer to the cold surface. Condensation may then form within the insulation system even when the outer surface of the straight section meets the calculation.

Penetrations and Terminations

Wall penetrations, equipment nozzles and insulation terminations should be sealed and detailed for cold-service continuity. Exposed pipe edges can spread condensation into adjacent sections.

FUNAS provides HVAC duct and pipe insulation solutions covering chilled water, air-conditioning, refrigeration and related mechanical applications.

How to Match the Calculated Thickness to Product Availability

Thickness selection should follow this sequence:

1. Calculate the required thermal and condensation-control thickness.
2. Apply the project-approved design margin.
3. Round up to a suitable available thickness.
4. Confirm that the required pipe diameter and wall-thickness combination is available.
5. Check whether straight pipes, fittings and equipment need different product forms.
6. Confirm installation accessories, facing and protective requirements.

Where the required thickness exceeds a suitable single-layer option, the engineer may consider a multi-layer system. Joint positions should be staggered, and the complete assembly should maintain vapor-control and thermal continuity.

Do not select the calculation basis from the supplier’s stock list. Calculate the requirement first, then confirm how it can be supplied.

Common Thickness Selection Mistakes

• Using outdoor climate averages: Average weather data may not represent the actual plant room, shaft or ceiling condition.
• Ignoring relative humidity: Ambient temperature alone cannot define the dew point.
• Using one thickness for every pipe diameter: Pipe geometry is part of the calculation.
• Using thermal conductivity from another product: Material grade and test temperature should match the selected insulation.
• Rounding down to a stocked size: The ordered thickness should meet or exceed the approved requirement.
• Assuming facing replaces thickness: Facing and insulation perform different functions within the assembly.
• Ignoring supports and valves: Local thermal bridges may sweat before the straight pipe surface.
• Calculating only for normal operation: Start-up, lower setpoints and temporary conditions may be more demanding.
• Confusing fire grade with thermal thickness: Fire classification and condensation-control thickness are separate specification decisions.

Information to Include in a Thickness Review or RFQ

Fire classification, thermal conductivity and other technical data should be confirmed for the exact product grade being quoted. Available FUNAS documents can be reviewed through the insulation certifications and test reports page, while project-specific document availability should be confirmed before ordering.

Frequently Asked Questions

Is 19mm insulation enough for chilled water pipes in a humid area?

There is no universal answer. The required thickness depends on the chilled water temperature, pipe diameter, ambient temperature, relative humidity, insulation thermal conductivity, surface condition and design margin. A project calculation is needed before confirming whether 19mm is sufficient.

Does higher humidity always require thicker insulation?

For the same cold surface temperature and other conditions, higher humidity raises the dew point and generally increases the condensation-control requirement. The final result should still be calculated using the complete set of design inputs.

Can the same insulation thickness be used for every pipe diameter?

Not automatically. Pipe diameter affects the heat-transfer geometry, and available preformed tube combinations may also vary by diameter. Each pipe group should be checked against the approved calculation or pipe schedule.

Can foil-faced insulation be thinner than plain insulation?

A facing can affect surface emissivity and may influence a calculation, but it does not automatically permit a thinner insulation layer. The final assembly should be calculated using the actual facing and installation condition.

Should valves and pipe supports use the same nominal thickness?

They should maintain thermal performance equivalent to the adjoining insulation system. The exact detail may differ, but reducing or compressing the insulation at supports, valves and flanges can create local condensation.
