When Does Elastomeric Insulation Need Aluminum Foil Facing?

Foil faced elastomeric insulation is often specified for exposed HVAC ducts, mechanical piping, equipment surfaces and outdoor services. It is not required on every elastomeric insulation system, because the closed-cell foam itself provides the main thermal insulation and moisture-control layer. The facing becomes valuable when the outside of that insulation needs additional protection or a particular finished surface.

For contractors and project buyers, this creates two separate decisions: first select the elastomeric insulation and thickness for the operating conditions, then decide whether the installation environment justifies an aluminum facing. For a broader explanation of the base material, see the rubber foam insulation guide.

When Does Elastomeric Insulation Need Aluminum Foil Facing?

Aluminum foil facing becomes worth specifying when the insulation needs protection or finishing beyond the basic function of the closed-cell foam. Typical reasons include exposed installation, sunlight or outdoor exposure, routine handling, a metallic finished appearance, or a facing requirement written into the project specification.

A useful selection rule is to design the insulation for temperature and condensation control first, then choose the facing according to the exposure around the finished system.

What Does Aluminum Foil Facing Add to Elastomeric Insulation?

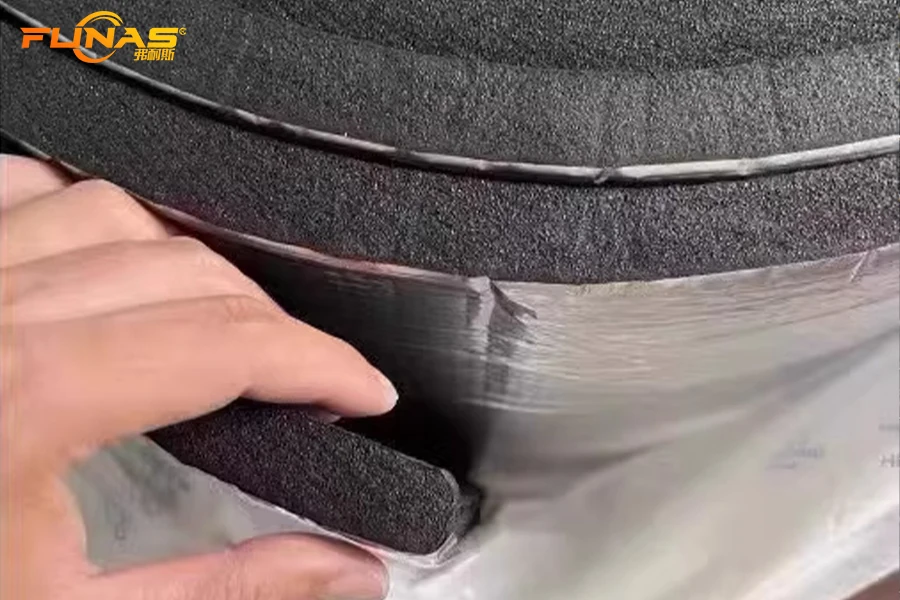

The elastomeric foam and its facing perform different functions. The foam provides the main thermal resistance and closed-cell structure, while the aluminum facing becomes the exposed outer layer of the installed system.

Depending on the facing construction and the application, aluminum foil can provide:

• Additional protection for the elastomeric surface during normal handling and maintenance.
• A finished metallic surface for exposed pipes, ducts and equipment.
• An external protective layer for installations exposed to sunlight or outdoor conditions.
• A surface finish specified for visible mechanical services or industrial installations.
• A different facing construction where embossing or reinforcement is required.

Facing should therefore be treated as part of the complete insulation specification rather than as a replacement for insulation thickness or base-material performance. This is also why two products described simply as “aluminum foil rubber foam” may not have the same facing construction.

Where Is Foil-Faced Elastomeric Insulation Worth Specifying?

Exposed HVAC Ductwork

External insulation on visible HVAC ducts is a common reason to specify an aluminum-facing configuration. The elastomeric sheet provides the insulation layer, while the outer facing creates a more protected finished surface instead of leaving the foam directly exposed.

This is useful in mechanical rooms, exposed ceiling services and other areas where the duct insulation remains visible after installation. FUNAS NBR/PVC rubber foam sheet is available with plain, self-adhesive and aluminum foil-facing options for ducts, large pipes and equipment surfaces.

Mechanical Rooms and Accessible Services

Insulation installed beside pumps, valves, service aisles or regularly maintained equipment is more exposed to routine contact than insulation hidden inside a protected ceiling space. Adding a facing gives the elastomeric surface another layer of protection during inspection and maintenance.

The required level of protection should still reflect the actual site. Normal service contact and severe mechanical abuse are different conditions, and a thin flexible facing should not be specified as a substitute for heavy-duty jacketing where substantial impact protection is required.

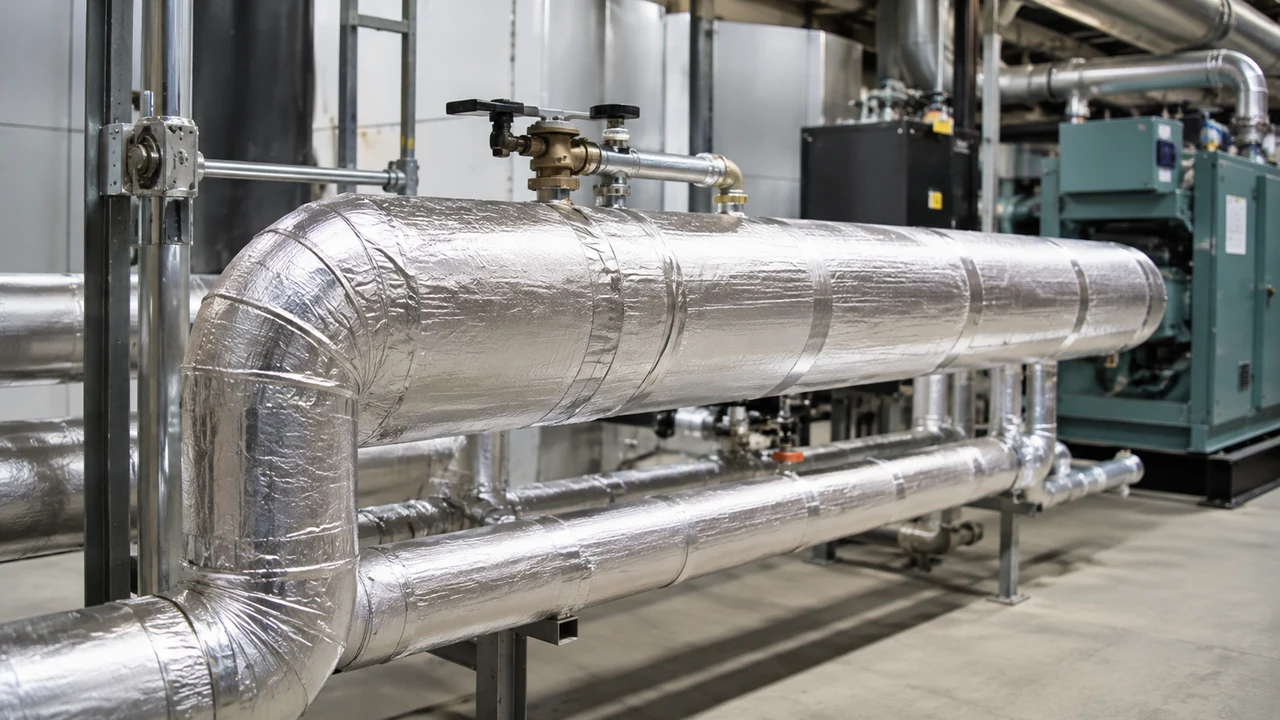

Exposed Mechanical Pipework

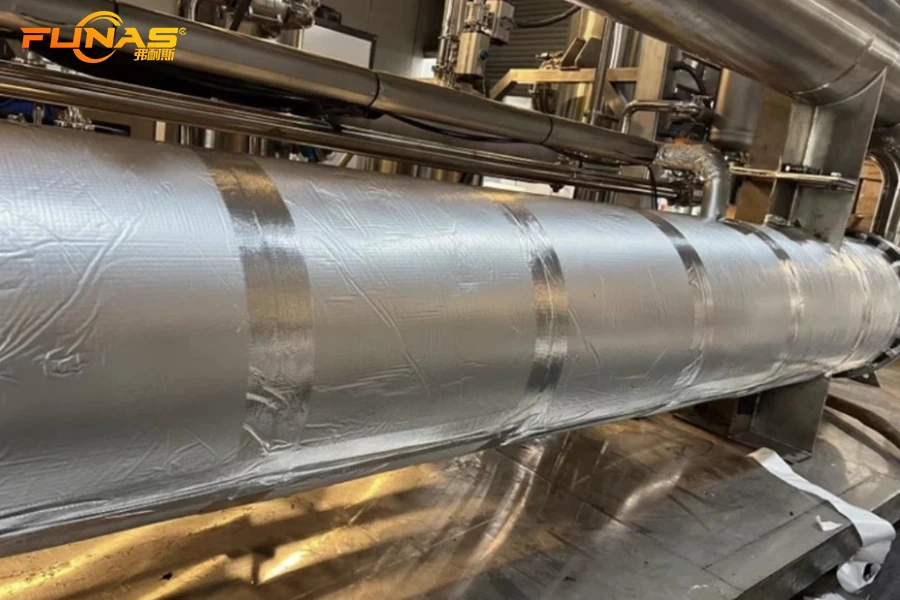

Foil-faced pipe insulation can also be specified where chilled-water, refrigerant or other mechanical piping remains visible or requires an external protective finish. Pipe diameter, insulation thickness and operating conditions should be confirmed independently from the facing selection.

FUNAS NBR/PVC rubber foam pipe insulation is available in several configurations, including aluminum foil-faced options for projects that require an additional exterior layer.

Outdoor and Sunlight-Exposed Installations

Outdoor services introduce exposure that concealed indoor insulation does not normally encounter. Direct sunlight, rain, temperature cycling, maintenance activity and the condition of seams and fittings all influence how the outer surface should be protected.

For FUNAS projects, aluminum foil facing is used as an additional protective layer where the elastomeric insulation is exposed to sunlight or outdoor conditions. The embossed grid-pattern aluminum foil configuration is commonly recommended for exterior applications, while reinforced aluminum foil configurations are also available where a different facing structure is preferred.

The important purchasing point is to describe the actual installation instead of ordering only by appearance. A supplier should know whether the material is for an indoor plant room, partially sheltered equipment, rooftop pipework or another exposed service. For more detail on exterior systems, see the FUNAS guide to using nitrile rubber insulation outdoors.

When Is Plain Elastomeric Insulation Usually Enough?

A facing makes sense when the installation needs the function it provides. Where indoor elastomeric insulation is concealed and protected from sunlight, weather and routine physical contact, a plain product may already match the project requirement.

Typical examples include chilled-water pipes above protected ceilings, refrigerant lines inside service shafts and indoor pipework enclosed within controlled mechanical spaces.

In these applications, insulation thickness, correct pipe fit and continuity around seams, fittings, valves and supports usually deserve more attention than adding an exterior finish. Plain and foil-faced insulation should therefore be treated as different configurations for different installation conditions rather than as lower- and higher-grade versions of the same product.

Embossed vs Reinforced Aluminum Foil Facing: What Is the Difference?

Once aluminum facing has been selected, buyers still need to identify the facing construction. A visible square pattern, a thicker feel and an internal reinforcing structure are not the same product characteristic.

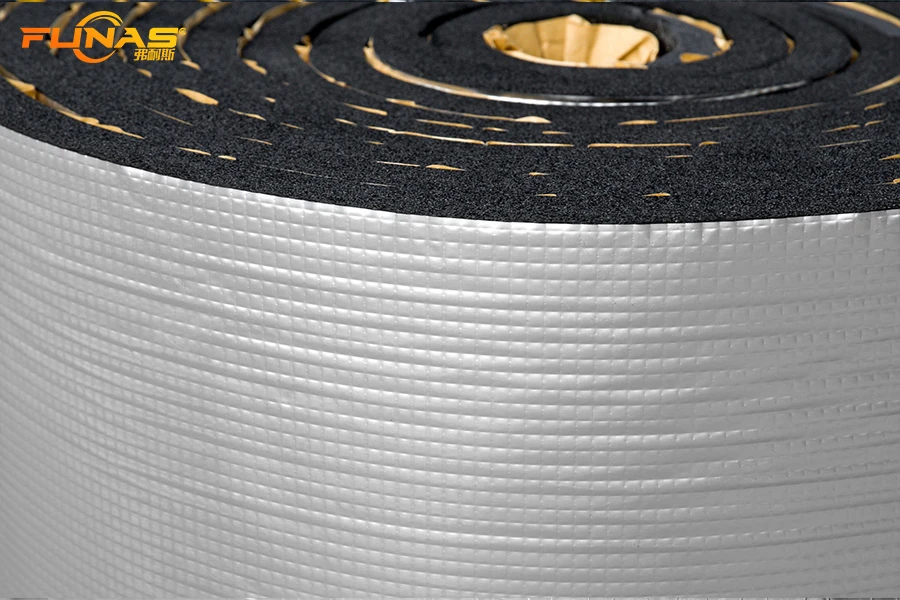

Embossed Grid-Pattern Aluminum Foil Facing

An embossed aluminum facing uses a formed surface pattern. The square or grid texture gives the exterior a distinctive finish, but the visible pattern itself should not automatically be interpreted as an internal reinforcing mesh.

FUNAS uses an embossed grid-pattern aluminum foil configuration that feels relatively firm and is commonly recommended by the sales team for outdoor applications. It provides a finished protective exterior over the rubber foam while retaining the flexibility needed for insulation sheets and rolls.

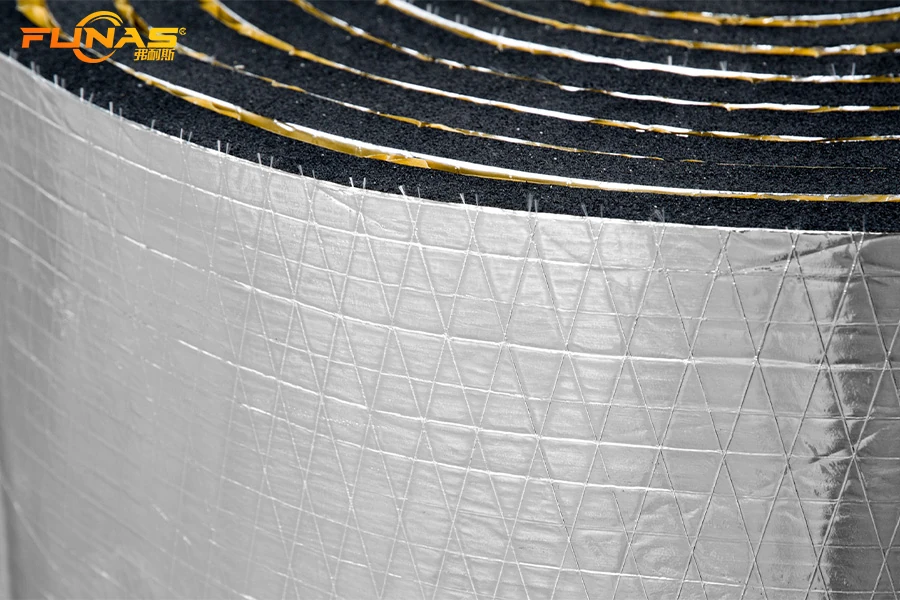

Reinforced Aluminum Foil Facing

A reinforced facing uses an additional reinforcing structure within the facing construction. Its identifying feature is the reinforcement itself rather than simply a surface pattern.

FUNAS also offers a reinforced aluminum foil-facing configuration. This option can be considered where a reinforced facing structure is preferred for the project, including exposed and outdoor insulation applications.

This distinction matters when comparing quotations. A buyer who specifies only “grid aluminum foil” may receive quotations for products with similar-looking surfaces but different constructions. Where the facing structure matters, it is better to confirm whether the requirement is an embossed finish, reinforcement, or a specific laminate construction.

How Should Aluminum Foil Facing Be Selected for Outdoor Use?

Outdoor selection should start with the exposure around the insulation. A pipe beneath a partially covered structure and a line continuously exposed on a rooftop do not experience the same conditions, even if both are described as outdoor installations.

For FUNAS projects, foil-faced configurations are used to provide an additional protective exterior where sunlight and outdoor exposure need to be addressed. The embossed grid-pattern configuration is commonly selected for this purpose, while reinforced facing can be reviewed where the project calls for that construction.

Installation details matter as well. Longitudinal seams, overlaps, fittings, elbows, supports and terminations create transitions in the outer protective layer. These areas should be considered together with the facing rather than treating the roll surface alone as the complete outdoor system.

For procurement, provide the installation location and expected exposure with the RFQ. That gives the supplier more useful information than simply requesting “UV aluminum foil” or “outdoor foil,” especially where the pipe geometry or project specification requires a particular finish.

Does Aluminum Foil Facing Change Condensation Control?

Condensation control still begins with the thermal design of the elastomeric insulation. The finished insulation surface needs to remain above the local dew point under the expected service and ambient conditions.

Operating temperature, ambient temperature, relative humidity, insulation thickness, thermal conductivity, air movement and the final surface condition all influence the result. A metallic facing changes the finished surface, so the actual faced construction should be considered in condensation calculations rather than reducing insulation thickness simply because foil has been added.

This distinction is particularly relevant for chilled-water and refrigeration systems in hot and humid environments. For those projects, see the FUNAS guide to choosing insulation thickness for hot and humid conditions.

Good installation remains part of the same system. Longitudinal seams, butt joints, valves, fittings, supports and terminations should maintain insulation continuity so that exposed cold surfaces do not become local condensation points.

What About Aging and Long-Term Insulation Performance?

The facing protects the outer surface, but long-term system performance still depends on the elastomeric foam underneath it. This is why the performance of the base insulation remains relevant even when a project selects an aluminum-faced configuration.

In a 2026 inspection of FUNAS rubber foam, the tested material recorded thermal conductivity values of 0.030 W/(m·K) at a mean temperature of -20°C, 0.031 W/(m·K) at 0°C and 0.033 W/(m·K) at 25°C. The same inspection included a 150-hour anti-aging test; after testing, the sample showed no cracking, pinholes or obvious deformation, with only slight surface wrinkling observed.

These results describe the tested rubber foam base material. Facing can then be selected separately according to the surface protection, appearance and exposure required by the project.

Does Aluminum Foil Facing Affect Fire Documentation?

For projects with fire-performance requirements, buyers should confirm the documentation against the product configuration being ordered. A plain sheet, foil-faced sheet, reinforced facing and self-adhesive construction can represent different supplied configurations even when they use the same general insulation material.

The purchasing team should therefore identify the product form and facing when requesting technical documents instead of confirming only the rubber foam grade. For projects comparing flame-retardant grades, the B1 vs B2 rubber foam insulation guide covers the additional documentation points buyers should check.

What Should Buyers Specify When Ordering Foil-Faced Elastomeric Insulation?

An RFQ that says only “aluminum foil rubber foam” leaves several important decisions unresolved. Providing the facing requirement separately from the insulation specification usually leads to a more accurate quotation.

Describing the facing separately is particularly useful when comparing suppliers. Two quotations can both say “foil-faced elastomeric insulation” while referring to different surface patterns, reinforcement structures and product configurations.
