Which Rock Wool Blanket Specification Fits Hot Pipes, Tanks and Industrial Equipment?

A rock wool blanket specification should start with the equipment and operating conditions, not with density alone. For industrial buyers, two blankets with similar dimensions can still be unsuitable substitutes if their temperature rating, thermal data, product form, documentation or protective system requirements are different.

For hot pipes, tanks, vessels and industrial equipment, the practical selection sequence is usually: confirm the application and surface geometry, check the operating temperature, determine the required insulation thickness, select a suitable density and product form, then verify dimensions, facing or reinforcement requirements and technical documents.

What Should a Rock Wool Blanket Specification Include?

A useful specification gives the supplier enough information to identify the required product and prepare a comparable quotation. A request such as “50 mm rock wool blanket” leaves several important variables undefined.

This information is especially useful when comparing offers from several suppliers. If quotations are based on different density, dimensions, test documents or product forms, comparing only the price per roll can produce a misleading result.

Start With Operating Temperature Before Choosing Density or Thickness

Operating temperature is one of the first conditions to confirm because it determines whether the selected insulation product is suitable for the service environment. Buyers should distinguish between the normal operating temperature, possible peak temperature and the temperature values used in thermal conductivity testing.

Maximum service temperature, melting behavior, fire classification and the mean temperature used for thermal conductivity measurement describe different properties. One value should not be used as a substitute for another.

For this reason, avoid specifying an industrial blanket only because rock wool is generally associated with high-temperature insulation. Request the service-temperature information and supporting technical document for the exact product being quoted.

FUNAS also recommends confirming operating conditions before material selection for industrial equipment and piping insulation, particularly for process piping, tanks, vessels and equipment surfaces.

How Should Insulation Thickness Be Selected?

Temperature alone does not determine insulation thickness. The required thickness depends on the thermal objective and the complete operating environment.

Depending on the project, the design may be intended to reduce heat loss, maintain a process temperature, control the external surface temperature or support personnel protection requirements. Relevant inputs can include:

• Operating temperature
• Ambient temperature
• Pipe or equipment dimensions
• Thermal conductivity at the relevant mean temperature
• Target heat loss
• Required external surface temperature
• Air movement around the insulated surface
• Surface emissivity of the outer jacket or cladding
• Single-layer or multilayer insulation design

The National Insulation Association mechanical insulation design data explains how operating temperature, ambient conditions, thermal conductivity and surface conditions enter mechanical insulation calculations. This is why a universal table such as “temperature X always requires thickness Y” should not replace a project-specific calculation.

If an engineering specification has already established the insulation thickness, the purchasing request should follow that requirement. If thickness is still being determined, provide the operating conditions rather than asking a supplier to select it from temperature alone.

Does Higher Rock Wool Blanket Density Mean Better Performance?

Not automatically. Density is a useful specification, but it should not be treated as a single quality ranking.

For industrial blankets, density can influence handling, compression, form stability and how the insulation behaves around large curved surfaces. However, a higher density by itself does not prove a lower thermal conductivity, a higher maximum service temperature or a better fire classification.

The more useful approach is to compare density together with:

• Required thickness
• Blanket construction and product form
• Thermal data for the exact specification
• Surface geometry
• Support and fixing method
• Project documentation requirements

FUNAS currently lists regular rock wool blanket roll specifications of 80 kg/m³ and 100 kg/m³, with regular thickness options of 40 mm and 50 mm. The regular roll size shown is 0.6 m × 3 m, while project-specific density and dimensions can be discussed before quotation.

These regular options should be treated as available starting points rather than a substitute for project design. A buyer with an approved specification should submit the specified density, thickness and dimensions directly.

Plain Blanket, Facing or Reinforcement: What Should Buyers Confirm?

The insulation blanket and the outer protection system should not be treated as the same component. A project may use a plain mineral wool blanket beneath a separate metal jacket, while another specification may call for a particular facing or reinforced blanket construction.

Plain Rock Wool Blanket

A plain blanket can be considered where the insulation system already includes the required fixing, support and external protection. This is common when the project specification separately defines the insulation layer and metal cladding system.

Faced or Reinforced Blanket

If drawings or tender documents specify aluminum foil, wire mesh or another reinforcement, include that requirement in the RFQ rather than assuming it is part of a standard rock wool blanket.

Availability and supporting documentation should be confirmed for the exact requested construction before ordering. A facing should also not automatically be treated as a substitute for specified outdoor weather protection or metal cladding.

ASTM C553 is an example of an industry specification covering mineral fiber blanket thermal insulation for commercial and industrial applications, including product classification, physical properties and dimensions. Buyers can review the ASTM C553 mineral fiber blanket specification when it is relevant to their project. Referencing an ASTM standard as an industry resource does not mean that every FUNAS rock wool blanket specification is certified to that standard; the applicable test documents should be checked for the exact product being supplied.

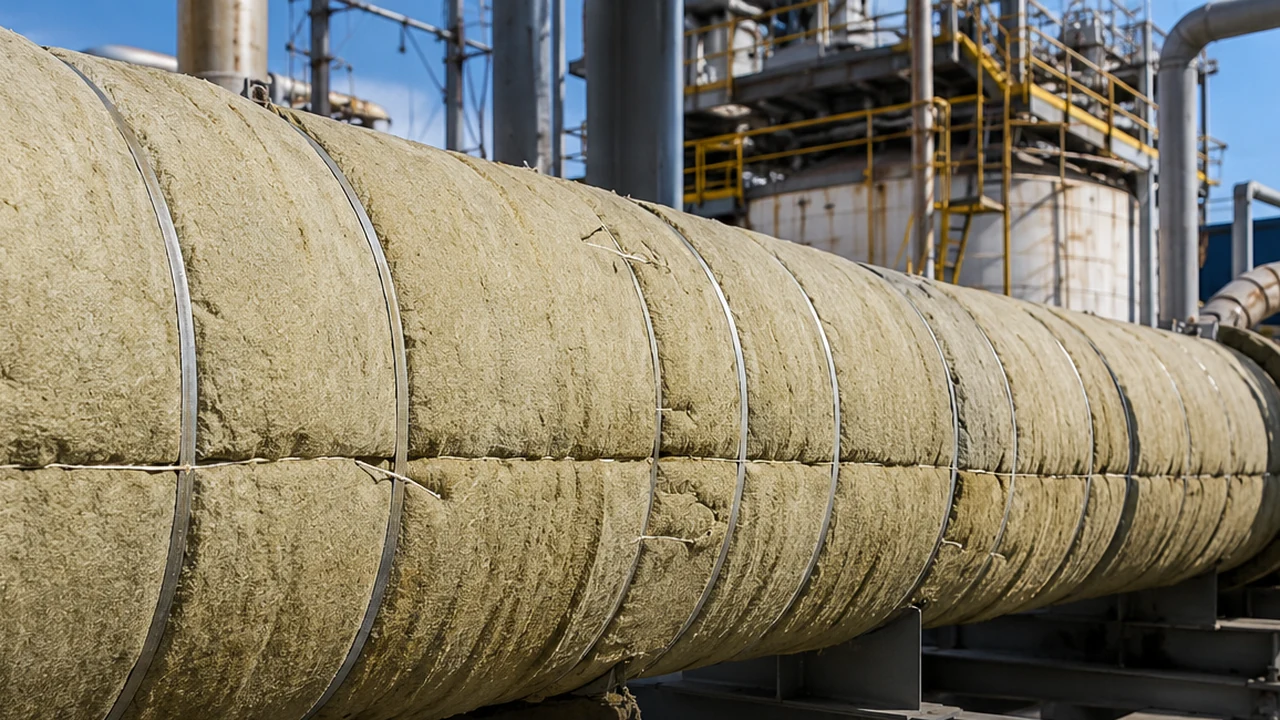

Rock Wool Blanket Specification for Hot Pipes

For hot piping, the first question is whether blanket form is appropriate for the geometry and project specification.

On regular straight pipe runs, the engineering design may specify a preformed insulation section or another defined system. Blanket materials become particularly relevant where the design calls for flexible insulation around large-diameter surfaces, non-standard sections or components that require field cutting and fitting.

Before requesting a rock wool blanket for hot piping, provide:

• Pipe outside diameter
• Normal operating temperature
• Expected maximum temperature
• Required insulation thickness
• Specified density, if applicable
• Total pipe length or required insulation quantity
• Indoor or outdoor installation
• Outer cladding requirement
• Required test reports or project standards

Do not specify the blanket according to pipe temperature alone. Pipe diameter changes the geometry of the insulation system, while the target heat loss or external surface temperature affects the required thermal design.

Rock Wool Blanket Specification for Tanks and Vessels

Tanks and vessels are one of the applications where flexible blanket form can be particularly useful because the insulation has to follow large cylindrical or curved surfaces.

For procurement, give the supplier enough dimensional information to estimate the required coverage and confirm whether the proposed roll size is practical for the equipment.

Roll flexibility does not remove the need for an appropriate support or cladding system. The insulation blanket, fixing arrangement and outer protection should be considered as parts of the complete industrial insulation assembly.

Rock Wool Blanket Specification for Industrial Equipment

Industrial equipment covers a wide range of surface conditions, so specifying only the equipment name is rarely sufficient.

Flexible blanket products may be evaluated for applications such as process vessels, heat exchangers, equipment housings, large industrial surfaces and irregular sections, provided the exact product specification is suitable for the operating conditions.

For equipment insulation, buyers should send:

• Equipment type and function
• Surface dimensions
• Shape and curvature
• Operating and maximum temperature
• Required insulation thickness
• Density requirement
• Quantity or estimated coverage area
• Support and fixing arrangement
• Cladding or protective layer requirement
• Applicable project specification and documentation

For very high-temperature equipment or applications with unusual thermal cycling, do not assume suitability from the material name alone. Confirm the service-temperature rating and relevant technical data for the exact product before approval.

When Does Rock Wool Blanket Make More Sense Than Board?

The choice between blanket and board is often driven by geometry and the way the insulation must be supported rather than by a simple performance ranking.

FUNAS rock wool insulation board is supplied as a semi-rigid product for flatter surfaces and panel-based insulation areas. The board and blanket forms should therefore be selected according to the installation surface and project design rather than assuming one form is universally better.

What Technical Documents Should Buyers Compare?

Technical documents become especially important when several suppliers appear to offer the same nominal density and thickness.

Before approving a product for a project, check whether the available documents relate to the same material, product form and specification being quoted. Useful items may include:

• Product technical data sheet
• Thermal conductivity test report
• Fire-performance documentation required by the project
• Applicable CE or other market-specific documentation where required
• Product dimensions and tolerances
• Packaging information
• Any project-specific submittal documents requested by the consultant or contractor

A test method mentioned in a tender document is not the same as proof that every product from a supplier has been tested to it. The test report should be checked against the product description, tested sample and required project specification.

FUNAS publishes available documentation for several insulation product categories on its certifications and test reports page. For rock wool orders, buyers should still confirm which document corresponds to the exact product and specification included in the quotation.

What Should Be Included in a Rock Wool Blanket RFQ?

A well-prepared RFQ reduces the risk of receiving quotations based on different assumptions. Before sending an inquiry, prepare the following information where available:

1. Application: hot pipe, tank, vessel, equipment or other industrial surface.
2. Operating conditions: normal temperature, maximum temperature and indoor or outdoor location.
3. Dimensions: pipe OD, tank diameter, equipment dimensions or required coverage area.
4. Thickness: specified thickness or thermal design requirement.
5. Density: required density if defined by the project.
6. Roll dimensions: required width and length if fixed by the purchasing specification.
7. Facing or reinforcement: plain blanket or any specified facing/reinforcement requirement.
8. Quantity: number of rolls, square meters or project coverage requirement.
9. Documents: test standards, certificates, submittal documents or consultant requirements.
10. Destination: delivery country and port or project location for quotation planning.

If the project specification is available, sending the relevant insulation schedule, data sheet or drawing is usually more useful than rewriting individual requirements in a short inquiry.

FUNAS Rock Wool Blanket Options for Project Procurement

FUNAS supplies flexible rock wool blanket rolls for building and industrial insulation applications. Regular listed options include 80 kg/m³ and 100 kg/m³ densities, 40 mm and 50 mm thicknesses and a 0.6 m × 3 m regular roll size. Project-specific density and dimensions can be discussed according to the required specification.

For industrial applications, quotation and technical confirmation should be based on the actual operating temperature, equipment geometry, required insulation build-up and document requirements rather than the regular catalogue specification alone.
