Why Elastomeric Insulation Seams Open After Installation: A Field Diagnostic Guide

When an elastomeric insulation seam opens after installation, the visible gap is a symptom rather than a diagnosis. The same failure pattern can result from an undersized tube, sheet cut too narrowly, insulation installed under tension, a bonding problem, or actual dimensional change in the material.

For HVAC contractors and project teams, the first task is not to decide who is responsible. It is to establish what changed between installation and the point when the opening was discovered.

This guide focuses on flexible closed-cell elastomeric pipe and sheet insulation used on commercial HVAC, chilled-water, refrigeration, and related mechanical systems.

On below-ambient systems, joint continuity also affects moisture control. ASHRAE guidance on insulation for mechanical systems discusses condensation control and water-vapor intrusion as key considerations for cold piping and equipment.

Quick Diagnosis: What Does the Open Seam Tell You?

The location and appearance of an opening can narrow the investigation, but they should not be treated as proof of a specific cause.

A useful first question is simple: do the dry insulation edges return to their intended position naturally, or must the material be stretched to close the gap?

Identify the Type of Seam Failure First

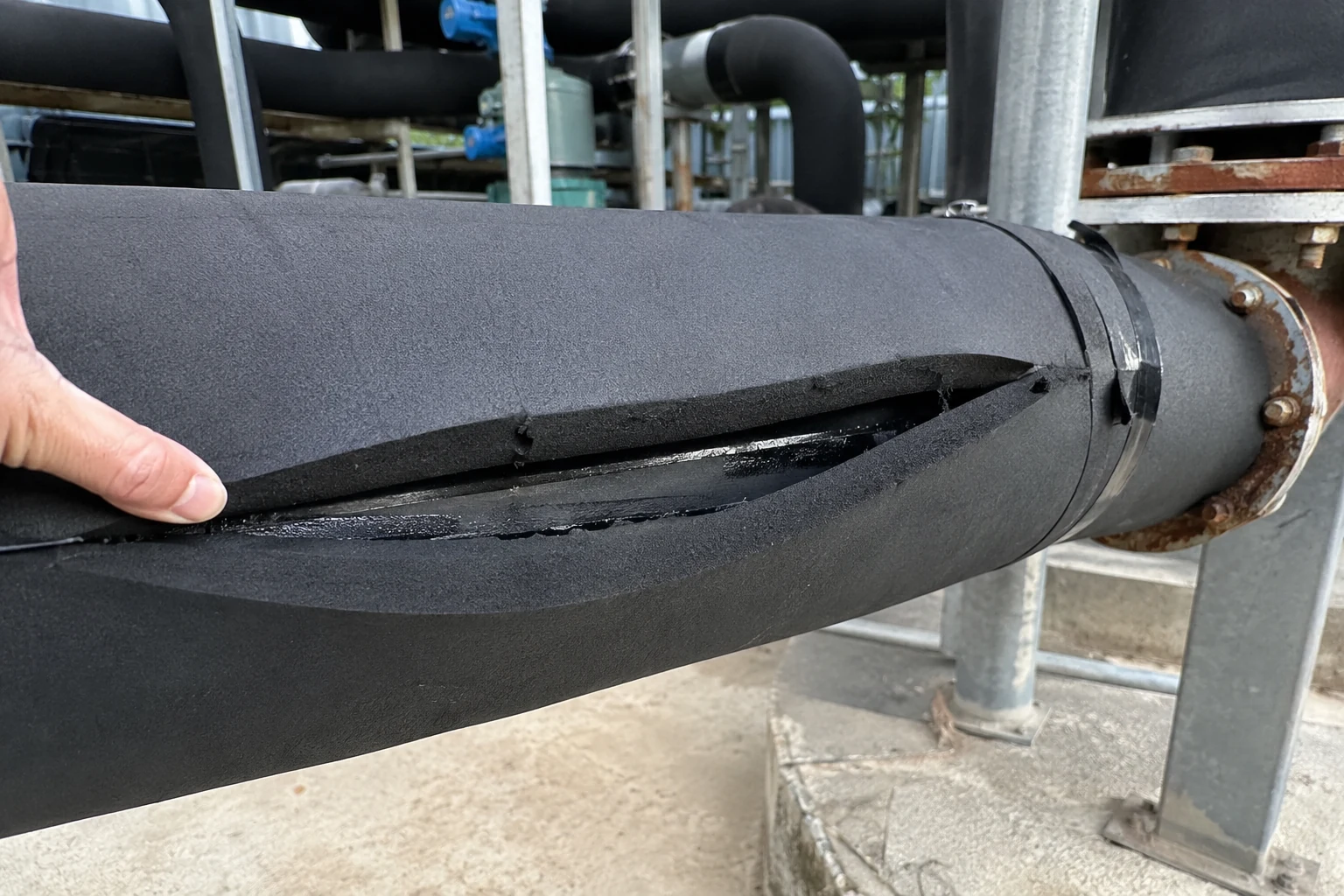

Longitudinal Seams on Pipe Insulation

A longitudinal seam runs along the direction of the pipe. Depending on the selected product configuration, the insulation may be unslit, pre-slit, self-adhesive, or installed using another approved arrangement.

If the two sides immediately move apart when released, begin by checking pipe fit and installation tension.

If the edges still align naturally but the bond has released, surface preparation and bonding conditions deserve more attention.

Butt Joints Between Insulation Sections

Butt joints occur where separate tube lengths or fabricated insulation sections meet.

A gap at one joint does not always mean that the visible section is the only problem. Pulling one insulation length along the pipe to close a joint can transfer the opening farther down the run.

Inspect several adjoining sections instead of repairing the first visible gap in isolation. Repeated openings can point to a systematic sizing, cutting, or installation issue.

Fabricated Sheet Seams on Large Pipes

Large pipes are often insulated with fabricated sheet where an appropriate preformed tube is unavailable or sheet better suits the project geometry.

The sheet should be cut for the actual installed geometry and required insulation thickness. If the edges only meet when the sheet is pulled tightly around the pipe, the seam remains under tension.

For detailed measurement and fabrication considerations, see the FUNAS guide to fabricating elastomeric sheet for large-diameter chilled-water pipes.

Four Causes of Elastomeric Insulation Seam Failure

1. Wrong Pipe Size or Incorrect Sheet Dimensions

One of the first checks should be whether the supplied insulation dimensions actually match the installed pipe.

Nominal pipe size should not automatically be treated as the actual outside diameter. For preformed tubes, compare the measured pipe OD with the insulation inside diameter specified for the order.

Insulation thickness also matters because available ID and thickness combinations can vary.

FUNAS supplies multiple size combinations for NBR/PVC rubber foam pipe insulation. For project selection, buyers should provide the actual pipe OD and required insulation thickness before bulk ordering.

Possible signs of an undersized tube include:

• The tube required noticeable stretching to fit around the pipe.
• The insulation wall appears locally thinner near the opening.
• The seam separates when installation pressure is released.
• The same failure repeatedly occurs on one pipe diameter.
• Other pipe sizes using the same product do not show comparable tension.

These signs may indicate a sizing problem, but they do not prove one on their own. Ordered dimensions and actual measurements should be compared first.

The same principle applies to fabricated sheet. For large pipes, tanks, ducts, and equipment, NBR/PVC rubber foam sheet insulation should be cut for the actual installation instead of being stretched to compensate for a short cut.

2. Insulation Installed Under Tension

Flexible insulation can be stretched, which is why installation tension can remain unnoticed while the work is being completed.

Longitudinal tension can occur when tube insulation is pulled along the pipe. Circumferential tension can occur when sheet is cut too narrowly and then stretched around a large pipe.

Closing one gap by pulling material from an adjoining section can simply move the problem to another joint.

During inspection, check for the following:

• Seam edges move apart immediately when released.
• A butt joint only closes when the adjoining tube is pulled.
• Sheet edges require substantial force to meet.
• Local insulation thickness appears reduced near the stressed area.
• The failure pattern follows the direction in which the material appears to have been stretched.

If two dry edges cannot meet naturally without pulling the insulation, adding more adhesive does not remove the underlying tension.

3. Bonding or Surface-Preparation Problems

A seam can also open when the insulation dimensions are correct. In that situation, inspect the bonding surfaces and installation conditions.

Possible interfering conditions include:

• Moisture or active condensation
• Dust and construction residue
• Oil or other surface contamination
• Rust debris
• Incompatible surface coatings

The adhesive procedure should also be reviewed. Possible issues include incomplete coverage, uneven application, joining the surfaces outside the specified readiness condition, inadequate contact, or use of an adhesive that has not been confirmed as compatible with the insulation and substrate.

Jobsite temperature, humidity, and air movement can affect adhesive behavior. Exact application temperature, flash time, or curing requirements should therefore come from the instructions for the adhesive being used rather than from a generic rule.

Self-adhesive insulation should still be inspected carefully. A factory-applied adhesive layer may simplify a particular seam or backing arrangement, but butt joints, cut edges, fittings, terminations, and repair areas may still require separate treatment according to the applicable installation procedure.

4. Actual Material Dimensional Change

Material dimensional change is a legitimate investigation category, but an open seam should not automatically be described as shrinkage.

Wrong sizing, installation stretching, a section cut short, missing material, or loss of adhesion can produce a visually similar gap.

A possible material-related issue becomes more credible when measurements and product records support it.

Useful evidence includes:

• Original and current dimensions
• Batch or lot identification
• Storage history
• Installation date
• Date the opening was first observed
• Operating and ambient conditions
• Unused material from the same batch, where available

Laboratory dimensional-change data should also be interpreted within its stated scope. A result relates to the specimen, product form, conditioning, test method, and test conditions described in the report.

It should not automatically be extended to every tube, sheet, thickness, facing, or adhesive-backed configuration.

For supplier evaluation, the FUNAS guide on how to review an elastomeric insulation technical data sheet explains how to compare technical data, test reports, and document scope.

How to Tell Dimensional Change from Installation Tension

Field diagnosis is stronger when several observations point in the same direction. Use the following sequence before concluding that an open seam resulted from shrinkage or installation stretching.

Step 1: Check Whether the Edges Meet Naturally

Where the approved inspection procedure allows, check whether the seam edges naturally return to their intended position.

If they can only meet when the material is stretched, the problem is unlikely to be a simple adhesive release.

Step 2: Measure the Pipe

Record the actual pipe outside diameter rather than relying only on a nominal pipe description.

Step 3: Confirm the Supplied Insulation Size

Check the ordered insulation ID, thickness, product format, and fabricated dimensions where applicable.

Step 4: Look at the Failure Pattern

Determine whether the problem is concentrated on one pipe OD, one installation area, one installation period, or one production batch.

Step 5: Inspect Neighboring Joints

A joint that was closed by stretching material from another section may have transferred the tension to the next seam or butt joint.

Step 6: Inspect the Bonding Surfaces

Adhesive transfer, moisture, contamination, or areas with limited bonding can change the diagnosis.

Step 7: Compare Unused Material

If unused material from the same batch remains available, compare its condition and dimensions with the installed sections.

Uninstalled material is useful because it has not been subjected to the same pipe fit or installation tension.

Step 8: Compare Measurements with Records

Original dimensions, current measurements, storage records, and batch information provide stronger evidence than a close-up photograph alone.

A photograph showing a gap confirms that the opening exists. It does not, by itself, establish how the gap was created.

Why an Open Seam Matters on Cold Piping

On chilled-water and refrigeration systems, seam integrity helps maintain a continuous insulation system. An opening can create a path where humid air reaches a colder area beneath the insulation.

The National Insulation Association discusses joint-and-seam sealing as part of moisture-control system integrity in its mechanical insulation design guidance.

For field troubleshooting, the practical point is simple: the underlying insulation gap should be investigated and corrected rather than only hidden beneath an outer finish.

An open seam does not automatically mean condensation will occur under every operating condition. Actual behavior still depends on pipe temperature, insulation thickness, ambient temperature, humidity, joint condition, and the rest of the installed system.

Should the Seam Be Rebonded, Patched, or Replaced?

Rebonding May Be Considered When

• The insulation is dry.
• The foam remains intact.
• The edges meet naturally without stretching.
• The cause of the original opening has been identified.
• A suitable bonding surface remains.
• The specified compatible bonding or sealing method can still be followed.

The approved project requirements and applicable installation procedure should determine the final repair method.

Replacement Should Be Evaluated When

• The insulation is clearly undersized for the pipe.
• The material must be stretched to close the opening.
• The gap represents missing insulation rather than a released bond.
• The foam is wet, torn, heavily compressed, contaminated, or damaged.
• The existing bonding surface cannot be prepared for a suitable repair.
• The failure extends beyond the visible seam.
• The installed product or dimensions do not match the approved specification.

Why Tape Alone May Not Correct the Problem

Tape, facing, or jacketing can form part of an approved insulation system, but covering an opening does not restore missing insulation thickness or remove mechanical tension from an incorrectly fitted section.

If the underlying insulation is incorrectly fitted, it should be corrected before the outer finish is restored.

More examples of installation-related failure points are covered in the FUNAS guide to common rubber foam insulation installation mistakes.

What to Send the Supplier When a Seam Failure Occurs

A supplier can review a seam problem more efficiently when the inquiry contains dimensions, product identification, and installation evidence rather than only a close-up photograph.

Project and Application Information

• Application: chilled water, refrigeration, VRF/VRV, ductwork, or equipment
• Pipe material
• Actual pipe outside diameter
• Indoor or outdoor installation
• Operating temperature
• Available ambient temperature and humidity information
• Project destination

Insulation Information

• Ordered insulation inside diameter
• Insulation thickness
• Tube or sheet format
• Pre-slit, self-adhesive, or faced configuration where applicable
• Product grade where applicable
• Batch or lot number
• Quantity affected

Failure and Installation Evidence

• Type of seam affected
• Installation date
• Date the opening was first observed
• Adhesive product used, where applicable
• Installation method
• System start-up timing
• Photographs of the full pipe run
• Close-up photographs of the seam
• Measured gap and insulation dimensions
• Unused material from the same batch, if available
• Required replacement quantity
• Required technical or review documents

For a replacement quotation, buyers should also confirm quantity by size, facing or backing requirements, packaging requirements, and any project documents that must be reviewed before approval.
