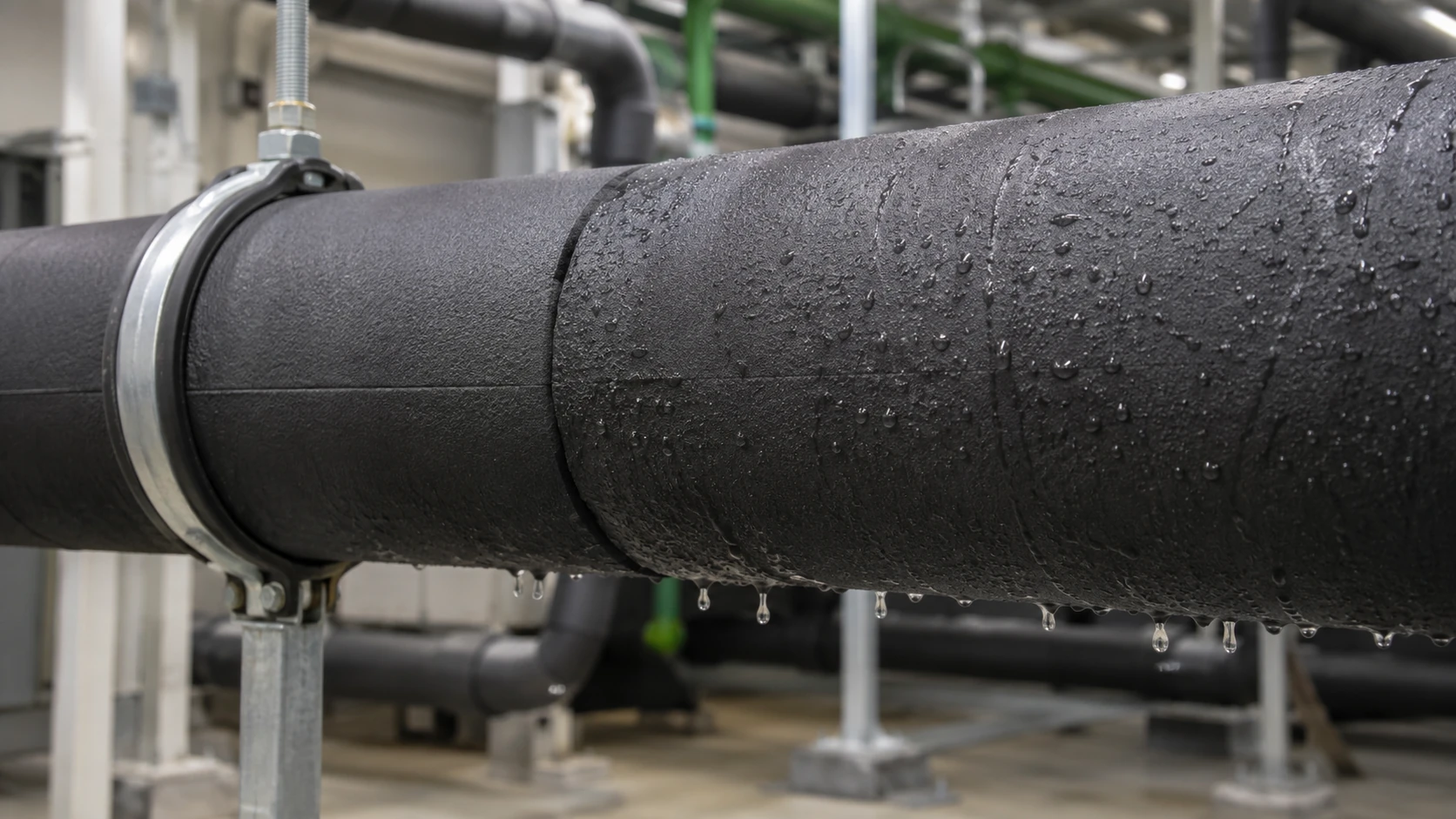

Why Is Chilled Water Pipe Insulation Still Sweating After Replacement?

Chilled water pipe insulation sweating after replacement usually means the first repair removed the visible symptom without fully correcting the failure path. Moisture may remain in adjoining insulation, the new section may have been connected poorly to the old system, or the replacement may have repeated the same unsuitable thickness and sizing assumptions.

This is not another general list of condensation causes. It is a post-repair audit for HVAC contractors, facility managers, and MEP teams who need to understand why a recently replaced section has failed and how to prevent a second unsuccessful repair.

The Replacement May Have Solved the Wet Spot, Not the Failure

A wet insulation surface often encourages a simple response: remove the damaged section and install new material. That approach can work when the defect is isolated and the adjoining system is dry, correctly specified, and mechanically sound.

It becomes unreliable when the visible wet area is only the point where water finally appeared. The original moisture path may extend along an open joint, beneath the insulation, through an old repair boundary, or from a leaking fitting outside the replaced area.

Before planning another replacement, confirm whether the current problem is genuinely related to the previous repair. Broader causes such as pipe leakage, insufficient thickness, support bridges, and abnormal humidity are covered in the guide to chilled water pipe insulation sweating. The investigation here begins after those general causes have already produced at least one failed repair.

Build a Post-Repair Timeline Before Opening the Insulation

The timing of the recurrence can be as useful as the location. A section that begins sweating within hours of start-up suggests a different problem from one that remains dry for several months and fails after later maintenance work.

Record the following before removing the replacement material:

• The date and scope of the previous repair.
• Whether the chilled water system was shut down during the work.
• How long the pipe remained dry before the system restarted.
• When condensation first reappeared.
• Whether the failure coincided with a seasonal humidity increase.
• Whether the chilled water temperature or operating schedule changed.
• Whether valves, sensors, supports, or nearby services were maintained afterward.
• Whether the first moisture appeared within the new section or at its edge.

This timeline helps separate an immediate installation failure from a later operational or maintenance-related failure. It also prevents the second contractor from treating every recurrence as a material defect.

Did the First Repair Stop at the Visible Wet Area?

The most common scope mistake in a local replacement is using the external water stain as the removal boundary. Moisture can travel inside an insulation system before becoming visible, especially where joints have opened or the material has separated from the pipe.

The visible wet patch may therefore be smaller than the actual affected area. If the first repair ended against insulation that was still damp, the new material was connected to an unstable boundary from the beginning.

Signs that the original repair area may have been too small include:

• Water returning close to one or both ends of the new section.
• Discoloration continuing beneath the retained insulation.
• Moisture emerging from the interface rather than forming uniformly on the surface.
• Old insulation feeling detached, soft, compressed, or irregular near the repair.
• Corrosion or staining extending beyond the original opening.
• Several short repairs appearing along the same pipe run.

The next inspection should continue until the adjoining insulation is demonstrably dry, stable, and capable of forming a sound connection. Simply extending the replacement by another short distance without checking the retained material may create another weak transition.

Is the New-to-Old Transition the Real Failure Point?

A replacement section introduces at least two interfaces that did not exist in the original continuous installation. These new-to-old joints are frequently the most vulnerable part of a repair.

The transition can fail even when the new straight section is correctly fitted. Typical problems include:

• The old insulation was cut back unevenly.
• The retained edge was wet, dusty, or covered with aged adhesive.
• The new material was cut slightly short and stretched into position.
• The old and new sections have different wall thicknesses.
• The butt joint looks closed on one side but contains a gap around the back of the pipe.
• An external tape or facing covers the joint while insulation is missing beneath it.
• The old material has shrunk, hardened, or lost its original shape.
• The outer vapor-control finish was restored without rebuilding the insulation joint itself.

A transition should be inspected around the full circumference, not only from the visible working side. In congested ceiling spaces, the inaccessible rear section of the pipe is often where a small gap remains.

For a durable repair, both ends should meet naturally without tension. Surface tape may protect a completed joint, but it cannot replace missing insulation thickness or correct an uneven repair boundary.

Was the Repair Completed While the Pipe Was Still Cold?

Post-replacement sweating can begin during the repair itself. When a chilled water line remains operational, an exposed pipe may start condensing as soon as the old insulation is removed. Installing new material over that surface can trap water and weaken the bond at seams and butt joints.

The same risk remains after shutdown if the pipe is not given enough time to warm and dry. Moisture can also remain in corrosion pits, beneath clamps, or inside adjoining insulation.

A repair carried out under difficult operating conditions should be reviewed for:

• Condensation on the pipe during surface preparation.
• Water remaining beneath the new insulation.
• Adhesive applied to damp or contaminated edges.
• Sections closed before the pipe surface was inspected.
• Incomplete joints left exposed when the system restarted.
• Adhesive or finishing work interrupted by early start-up.

These issues overlap with ordinary workmanship defects, but the repair context matters. A contractor may know how to close a seam correctly and still be unable to achieve a durable bond on a continuously sweating pipe. The guide to rubber foam installation mistakes that cause condensation provides additional checks for surface preparation, stretching, joint closure, and commissioning.

Did the Replacement Copy the Original Specification Without Rechecking It?

Maintenance teams often order the replacement by matching the insulation already on the pipe. That is reasonable only when the original design conditions remain valid.

If the existing insulation was too thin, incorrectly sized, or compressed, installing the same specification again will reproduce the original weakness. The new surface may look better while still operating too close to the surrounding dew point.

The old specification should not be copied automatically when:

• The chilled water supply temperature has been lowered.
• The space is now exposed to more humid outdoor air.
• Ventilation or air-conditioning in the service area has changed.
• The pipe is in a shaft, ceiling void, or semi-outdoor location.
• The replacement material differs from the original product.
• The actual pipe outside diameter was never verified.
• The existing insulation had been stretched or compressed.
• Condensation appears over most of the new surface rather than at one joint.

Thickness should be reviewed using the actual pipe diameter, operating temperature, ambient temperature, relative humidity, and technical data for the selected material. A separate guide explains how to evaluate insulation thickness for hot and humid conditions without relying on one standard thickness for every pipe.

Did Later Maintenance Reopen the Repaired Insulation System?

A replacement may initially remain dry and fail only after another contractor accesses the pipe. This is especially common around valves, instruments, strainers, branch connections, and removable insulation covers.

Later work may:

• Cut the new insulation to reach a valve or pipe joint.
• Open a removable cover and fail to reseal it.
• Install a sensor or test point through the insulation.
• Compress the material with a new cable, bracket, or clamp.
• Move the pipe or support and pull the repair joint apart.
• Replace a valve without restoring the original insulation thickness.
• Puncture a facing or protective layer during access.

If the repaired area remained dry until another service event, inspect that work before ordering a different insulation material. The failure may be related to how the system was reopened and restored rather than the original replacement.

What Does the Recurrence Pattern Say About the Failed Repair?

Is Another Local Patch Enough?

A second local repair may be appropriate when the failure has a clear boundary and the adjoining insulation remains dry and structurally sound. It becomes increasingly risky when several repairs have already divided the pipe into multiple short sections.

Logical replacement boundaries may include valves, branches, equipment connections, or accessible sections between supports. The objective is not to remove the maximum amount of insulation, but to avoid leaving unstable wet edges and unnecessary repair joints.

How Should Materials Be Specified for the Second Repair?

The second purchase should not be based only on the length of the visible wet area. A useful repair schedule should separate standard pipe runs, large diameters, fittings, valves, support areas, and transition pieces.

For each pipe size, provide:

• Actual pipe outside diameter.
• Required insulation wall thickness.
• Length of straight pipe to be replaced.
• Number of elbows, tees, reducers, valves, and flanges.
• Condition and thickness of adjoining insulation.
• Indoor, outdoor, or concealed installation environment.
• Chilled water temperature and maximum ambient humidity.
• Required product grade and technical documents.
• Required facing, protective finish, or backing.
• Adhesive and tape quantities.
• Packaging and project destination.

For regular straight runs, correctly matched FUNAS NBR rubber foam pipe insulation is available in multiple inner-diameter and wall-thickness combinations. The pipe size and insulation thickness should be stated separately so that an installer is not forced to stretch an undersized tube or close an oversized one in the field.

Large pipe surfaces, irregular fittings, and transition pieces may require field-cut FUNAS NBR/PVC rubber foam sheet. Sheet should be measured from the actual circumference and installed without tension. Adhesive and tape quantities should also be included in the repair schedule so that joint-sealing materials are not treated as an unplanned site purchase.

This does not mean every failed repair requires a different product. The more useful procurement question is whether the selected form, size, thickness, and accessories match the actual repair detail.

What Should Be Included in the Repair Acceptance Record?

A repaired section should not be accepted only because it looks clean before start-up. The contractor should create a record that can be compared with future inspections.

The record should include:

1. Photographs of the exposed pipe and removed insulation.
2. The confirmed source and extent of moisture.
3. Pipe outside diameter and installed insulation thickness.
4. Material form used for straight pipe and fittings.
5. Locations of all new-to-old transitions.
6. Surface condition before bonding.
7. Confirmation that the pipe and retained insulation were dry.
8. Adhesive, tape, facing, and accessory details.
9. Time between repair completion and system start-up.
10. Ambient temperature, relative humidity, and chilled water temperature during inspection.
11. Photographs after stable operation.
12. Any restrictions on future maintenance access.

For projects containing several pipe sizes, ducts, equipment surfaces, and accessories, the repair schedule can be coordinated as part of a broader HVAC insulation material plan. This helps prevent a local repair from being specified independently of the surrounding chilled water system.
