Why Is Chilled Water Pipe Insulation Sweating? Causes, Failure Points, and Solutions

Chilled water pipe insulation sweating occurs when the temperature of the exposed insulation surface falls below the dew point of the surrounding air. Water vapor then condenses on the insulation, joints, supports or other cold surfaces.

The visible water may be caused by insufficient insulation thickness, but thickness is only one possibility. Many failures begin at open seams, compressed supports, poorly insulated valves, damaged vapor-control layers or operating conditions that were not considered during material selection.

For commercial HVAC systems, the diagnosis should cover the complete insulation assembly rather than only the straight pipe sections. FUNAS provides HVAC insulation solutions for chilled water piping, refrigerant lines, ducts and related mechanical equipment.

Why Does Chilled Water Pipe Insulation Sweat?

Condensation depends on three basic conditions:

• The chilled water pipe is colder than the surrounding air.
• The insulation surface temperature is below the air’s dew point.
• Moist air can reach the cold surface or a cold section of the insulation system.

Insulation slows heat transfer and raises the temperature of the exposed outer surface. A correctly designed and installed system should keep that surface above the design dew point. Sweating begins when the thermal resistance is inadequate or when a discontinuity creates a local cold spot.

High ambient humidity increases the dew point and reduces the margin between acceptable and condensing conditions. An installation that remains dry in a conditioned mechanical room may begin sweating when doors are opened, ventilation changes, humid outdoor air enters the space or the chilled water temperature is lowered.

First Confirm That the Water Is Condensation

Water around an insulated pipe is not always caused by insulation failure. Before removing material, check whether the moisture comes from condensation, a leaking pipe, a valve stem, a flange, nearby equipment or water entering from another building component.

Common Design and Specification Causes

Insulation Thickness Is Too Low for the Actual Conditions

Insulation thickness should be selected using the chilled water temperature, pipe outside diameter, insulation properties, ambient temperature, relative humidity and required safety margin. Selecting thickness from pipe diameter alone can produce an inadequate specification.

A thickness chosen only to meet an energy-efficiency requirement may not provide sufficient condensation control in a high-dew-point environment. Mechanical rooms, ceiling voids, service shafts, loading areas and semi-outdoor spaces can have substantially different humidity conditions.

The Design Humidity Is Lower Than the Site Humidity

Condensation calculations often use a stated indoor design condition. The actual installation may later be exposed to humid construction air, open doors, uncontrolled ventilation or seasonal outdoor air infiltration.

The design team should identify the highest credible ambient temperature and relative humidity around the pipe, rather than relying only on the normal occupied-room condition.

Operating Conditions Change After Installation

A system may be commissioned at a lower chilled water temperature than the insulation design assumed. Changes in chiller control, supply-water setpoint, operating schedule or building ventilation can also reduce the insulation surface temperature or increase the surrounding dew point.

If sweating begins after a system adjustment, compare current operating data with the original insulation selection criteria before treating the problem as an isolated installation defect.

Material Sizing and Product Form Failure Points

The Insulation Tube Does Not Match the Pipe

Preformed pipe insulation should match both the pipe outside diameter and the required insulation wall thickness. An oversized tube may leave air gaps or produce poorly closed seams. An undersized tube may be stretched during installation, reducing thickness and placing continuous stress on the longitudinal joint.

For standard pipe runs, correctly matched NBR rubber foam pipe insulation can reduce cutting and provide more consistent coverage than field-wrapping narrow sheet strips.

Sheet Insulation Is Stretched Around the Pipe

Rubber foam sheet should be measured and cut to fit the actual circumference. Stretching the sheet around a pipe reduces the effective thickness and pulls the seam apart as the material attempts to return to its original dimensions.

Sheet is often more practical for large-diameter pipes, equipment surfaces and irregular components. A suitable rubber foam insulation sheet should be cut without excessive tension and installed with properly closed joints.

Contractors selecting between the two forms can review the rubber foam sheet versus pipe insulation guide before confirming project quantities.

Insulation Is Compressed

Insulation loses thermal resistance where it is compressed by clamps, hangers, access panels or adjacent services. Compression can create a narrow cold line that sweats even when the rest of the pipe remains dry.

Limited installation clearance can also force installers to flatten the insulation or remove material around congested sections. These areas should be reviewed during coordination rather than repaired with surface tape after commissioning.

Seams and Joints That Allow Condensation

Longitudinal Seams Are Not Fully Bonded

An open longitudinal seam exposes a direct path toward the cold pipe surface. Even a narrow opening can admit humid air and produce a wet line along the insulation.

The mating surfaces should be clean, correctly aligned and bonded with a compatible insulation adhesive according to the installation procedure. The seam should close naturally without forcing or stretching the material.

Butt Joints Between Sections Are Open

Insulation tubes are commonly installed in multiple lengths. Each butt joint must remain tightly closed and sealed. Gaps can develop when installers cut sections too short, pull material along the pipe or fail to account for movement during installation.

Covering an open butt joint with tape does not restore the missing insulation thickness beneath it. The joint should first be reconstructed with properly fitted insulation before applying any specified external finishing material.

Multi-Layer Joints Are Aligned

Where multiple insulation layers are required, the joints should be arranged to avoid a continuous direct path through all layers. Aligning every seam and butt joint creates a concentrated weak point.

Adhesive Is Applied to Wet, Dusty or Contaminated Surfaces

Adhesive performance depends on surface preparation, application method and curing conditions. Dust, oil, moisture and construction debris can prevent a durable bond. Starting the chilled water system before joints have been completed or cured can also make later sealing difficult because condensation has already formed.

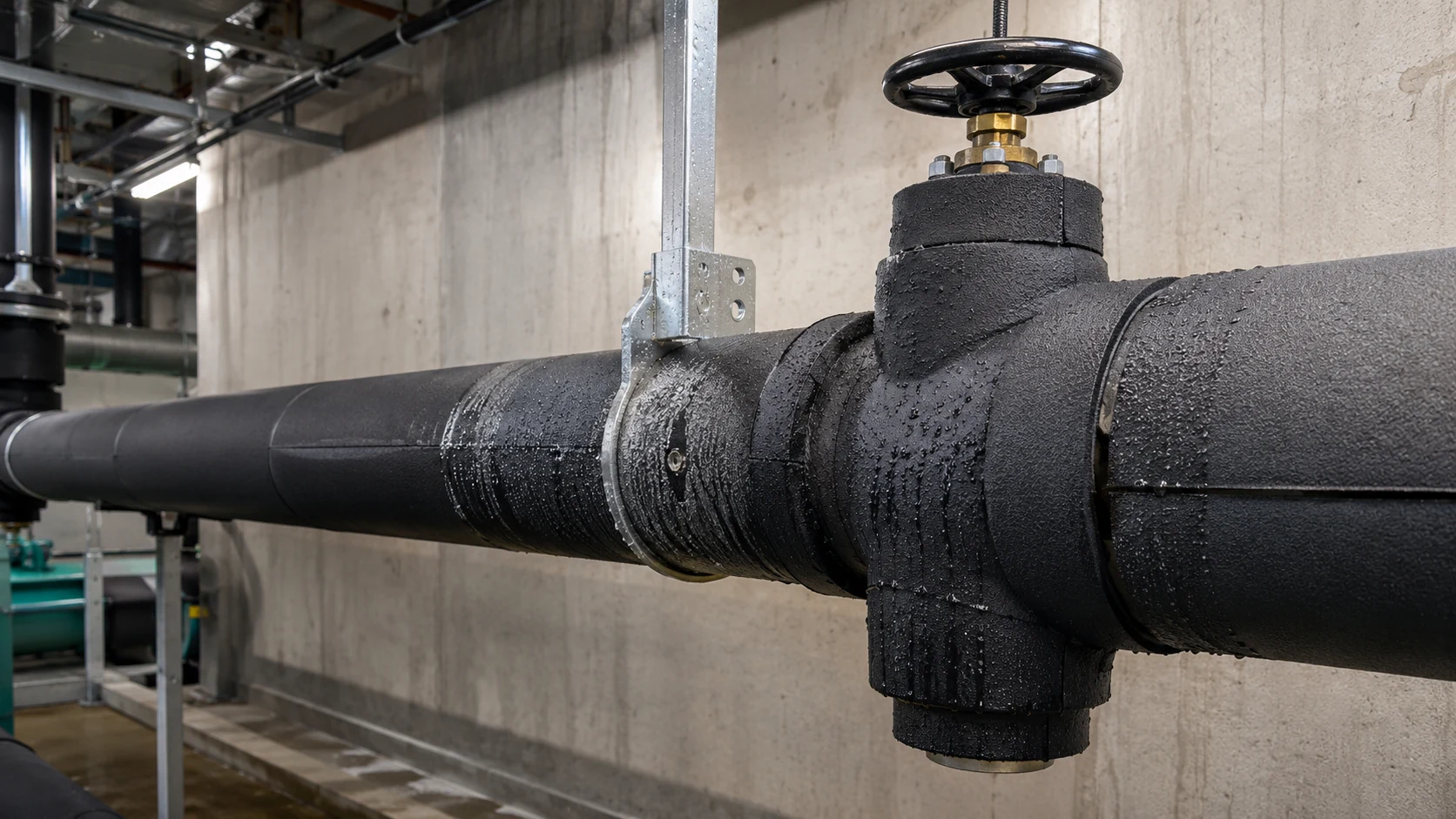

Pipe Supports and Hangers Are Frequent Condensation Points

Pipe supports are among the most common local failure points on chilled water systems. The support may compress the insulation, interrupt the insulation layer or connect the cold pipe directly to a metal clamp and hanger.

A suitable support detail should maintain thermal separation and vapor-control continuity through the supported section. Inspect the following:

• Whether the support interrupts or compresses the insulation.
• Whether metal clamps contact the cold pipe directly.
• Whether the support insert matches the insulation thickness.
• Whether joints around the insert are fully sealed.
• Whether the outer surface is damaged by movement or loading.

Wrapping tape around a sweating hanger may hide the symptom temporarily, but it does not remove the thermal bridge.

Valves, Flanges and Fittings Need Complete Coverage

Elbows, tees, reducers, valves, strainers, flanges and equipment connections have more complex shapes than straight pipe. They also create more seams and may require removable access for maintenance.

Common fitting failures include:

• Leaving valve bonnets, flange edges or small pipe sections exposed.
• Using insulation that is thinner than the adjoining pipe insulation.
• Creating excessive seams during field fabrication.
• Leaving gaps where pipe insulation meets a removable cover.
• Puncturing or cutting the insulation during later maintenance.

The fitting detail should provide continuous thermal coverage while still allowing the required access. Repeatedly removing and reinstalling a cover without resealing it can gradually create condensation paths.

Vapor-Control Continuity Matters on Cold Systems

Closed-cell rubber foam has low moisture absorption and can support condensation control, but the installed system still depends on continuous, correctly sealed joints. Open seams, cuts, punctures and exposed terminations allow humid air to reach colder surfaces.

Where an additional facing, coating or jacket is specified, all joints and penetrations should be treated as part of the complete vapor-control system. An external finish cannot compensate for open insulation joints beneath it.

Outdoor installations also require suitable protection against weather, mechanical damage and solar exposure. The facing or jacket must be selected for the environment and installed without leaving unsealed penetrations.

Construction and Commissioning Conditions Can Trigger Early Failure

Insulation installed during construction may be exposed to dust, rain, wash water and high indoor humidity before the building is enclosed. If the chilled water system starts while joints remain incomplete, condensation can enter the insulation assembly before final inspection.

Before system start-up, contractors should confirm that:

• All straight-pipe seams and butt joints are closed.
• Supports, valves, fittings and equipment connections are insulated.
• Damaged sections have been repaired.
• Adhesives have been applied and cured as required.
• Outdoor protection and specified facings are complete.
• The area ventilation and humidity conditions are within the design assumptions.

How to Diagnose Sweating Chilled Water Pipe Insulation

1. Identify the water source. Rule out pipe leakage, valve leakage, roof water and drainage problems.
2. Record operating conditions. Confirm chilled water supply and return temperatures during the failure.
3. Measure the environment. Record ambient temperature and relative humidity near the affected pipe, not only at the room thermostat.
4. Measure surface temperature. Compare the insulation surface temperature with the calculated or measured dew point.
5. Map the condensation pattern. Note whether moisture is uniform or concentrated at seams, joints, supports and fittings.
6. Check installed thickness. Confirm the actual insulation thickness and whether it has been compressed or stretched.
7. Inspect hidden moisture. Open a limited section where necessary to check for wet insulation, corrosion or pipe leakage.
8. Compare with the specification. Review the selected material, thickness, environmental assumptions and installation detail.

How to Correct the Problem

Repair Local Seam and Joint Defects

Remove loose, contaminated or damaged material. Reconstruct the affected area using insulation of matching form and thickness, then close the seams with a compatible adhesive and restore the specified outer finish.

Do not seal over active condensation. The pipe and insulation surfaces should be dry enough for the repair system to bond correctly.

Replace Wet or Degraded Insulation

Insulation that contains trapped water, has separated from the pipe, has lost its shape or can no longer maintain joint integrity may require replacement. The pipe surface should be inspected and treated as required before new insulation is installed.

Correct Pipe Support Details

Where sweating is concentrated at hangers, replace improvised or compressed details with a support arrangement that maintains insulation thickness and thermal separation. Seal the transition between the support section and the adjoining insulation.

Reinsulate Valves and Fittings

Fabricate fitting covers that provide complete coverage and match the required insulation thickness. Removable sections should have repeatable closure details so maintenance personnel can restore them after access.

Review the Required Insulation Thickness

If condensation is uniform across broad areas, the installed thickness may be inadequate for the actual chilled water temperature and ambient dew point. Recalculate the requirement using the current operating and environmental conditions.

Adding a thin outer layer without correcting wet material, open joints or support bridges may leave the original failure in place.

Control Unexpected Ambient Humidity

Where the insulation system matches the design but the room humidity is substantially higher than expected, investigate ventilation, infiltration, open doors, unconditioned shafts and other moisture sources. Insulation repair and humidity control may both be required.

Information Needed When Selecting Insulation for a New Project

A chilled water insulation quotation should be based on operating and installation data rather than a product name alone. Provide the supplier with:

• Chilled water supply and return temperatures.
• Maximum ambient temperature and relative humidity.
• Pipe material and outside diameter.
• Required insulation thickness or design criteria.
• Total pipe length by diameter.
• Quantity of elbows, tees, valves, flanges and equipment connections.
• Indoor, outdoor or semi-outdoor installation location.
• Support and hanger insulation details.
• Required grade, facing, backing or protective finish.
• Applicable test standards and required technical documents.
• Project destination and packaging requirements.

Fire classifications and test methods should be confirmed against the project specification and the documentation for the selected product grade. Terms such as B1, Class 0, ASTM, EN or other regional classifications should not be treated as automatically equivalent. Available FUNAS documents can be reviewed on the insulation certifications and test reports page.

Frequently Asked Questions

Is sweating always caused by insufficient insulation thickness?

No. Insufficient thickness can cause uniform surface condensation, but local sweating is often related to open seams, gaps, compressed supports, exposed fittings, damaged insulation or thermal bridges.

Can insulation tape stop chilled water pipe sweating?

Tape may be part of a specified finishing system, but it cannot replace missing insulation or repair a thermal bridge. Open joints and damaged material should be reconstructed before the outer finish is restored.

Why does condensation appear only at pipe hangers?

The hanger may compress the insulation or connect the cold pipe to an exposed metal component. This creates a local reduction in thermal resistance even when the straight pipe insulation is correctly sized.

Can wet pipe insulation be dried and reused?

It depends on the material condition and the source of moisture. Insulation that has lost adhesion, shape, thickness or joint integrity should normally be replaced. The pipe surface should also be checked for leakage or corrosion before reinstallation.

How should insulation thickness be selected for chilled water pipes?

Use the pipe diameter, chilled water temperature, insulation properties, ambient temperature, relative humidity, installation location and project safety margin. Confirm the result against applicable project specifications and local requirements rather than applying one thickness to every pipe.
