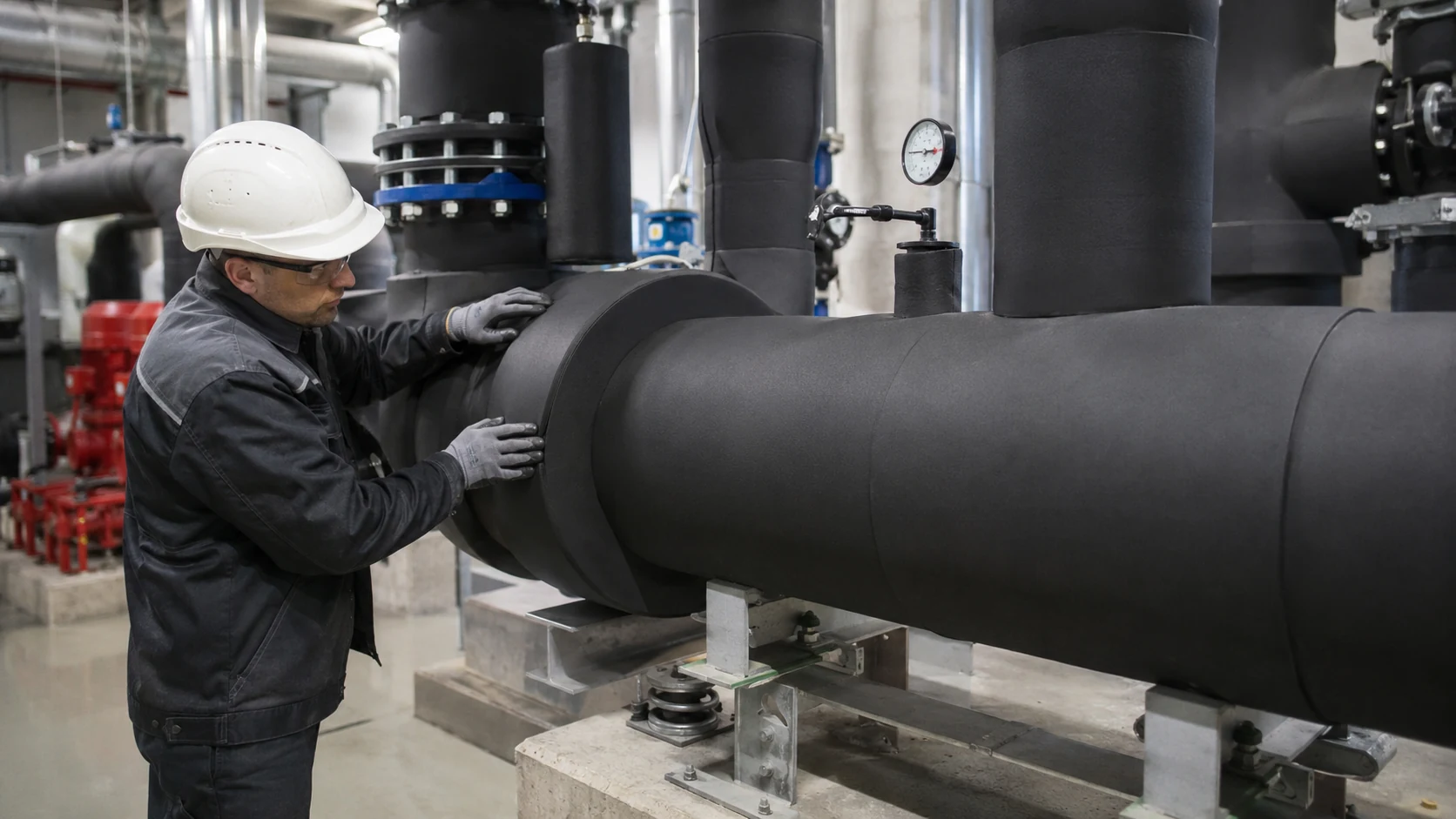

How to Insulate Large-Diameter Chilled Water Pipes with Elastomeric Sheet

Elastomeric sheet insulation for large-diameter pipes gives HVAC contractors a practical way to fabricate insulation around chilled-water piping where a suitable preformed tube is unavailable or where sheet material better fits the project layout.

For large chilled-water lines, the work is best treated as a fabrication process rather than simply wrapping flexible material around the pipe. Accurate pipe dimensions, consistent cutting, clean joints and controlled insulation thickness all affect the finished installation.

FUNAS supplies NBR/PVC rubber foam sheet for large pipes in standard and custom roll configurations. Depending on the selected specification, plain, self-adhesive and aluminum-faced options are available for HVAC and chilled-water applications.

When Does Elastomeric Sheet Make Sense for a Large Chilled-Water Pipe?

There is no single pipe diameter at which every project should change from preformed tube insulation to sheet. The decision depends on the actual pipe outside diameter, required insulation thickness, available insulation formats and project specification.

• Check the actual pipe outside diameter rather than nominal size alone.
• Compare the required insulation thickness with available preformed tube sizes.
• Review the sheet width and roll format required for fabrication.
• Consider fittings, valves, supports and other areas that require field cutting.
• Confirm whether single-layer or multi-layer construction is specified.

Where suitable preformed pipe insulation is available, it can remain practical for straight runs. Sheet becomes useful when pipe dimensions, fittings or project-specific fabrication make a flexible roll format more suitable.

For a broader material-form comparison, see the FUNAS guide to rubber foam sheet vs pipe insulation.

Work from actual pipe outside diameter

Nominal pipe size is useful for schedules and equipment identification, but sheet fabrication should be based on the actual outside diameter of the surface being insulated.

The contractor should also confirm whether coatings, existing layers, fittings or other components change the finished diameter at any point along the run.

Consider the required insulation thickness

The specified thickness affects both the finished circumference and the amount of sheet required. It may also determine whether the installation uses one layer or several layers.

For chilled-water work, the thickness should be established from the project operating conditions, ambient conditions, material data and applicable design requirements before fabrication begins. For thickness selection, refer to the FUNAS guide on insulation thickness for hot and humid conditions.

Match the roll format to the fabrication plan

Sheet width matters on large piping because it affects cutting layout, the number of fabricated sections and material utilization.

FUNAS rubber foam sheet is available in different roll dimensions depending on grade and specification, including 1 m and 1.5 m width options. Project-specific dimensions can also be reviewed where standard formats do not match the required fabrication plan.

What Should Be Confirmed Before Cutting the Sheet?

Bulk cutting should start only after the project team has confirmed the dimensions and insulation configuration required for the pipe run.

Pipe and site information:

• Actual pipe outside diameter
• Straight-run length by diameter
• Locations and sizes of elbows, tees and reducers
• Valve and flange dimensions
• Pipe-support locations
• Available working clearance
• Indoor, exposed or outdoor location

Insulation information:

• Approved insulation thickness
• Required fire-performance grade
• Sheet width and roll format
• Plain, self-adhesive or aluminum-faced surface
• Single-layer or multi-layer construction

Confirm the sheet configuration

Plain, self-adhesive and faced sheets involve different installation and finishing requirements. The required configuration should therefore be identified before material is ordered or cut.

FUNAS supplies B1 and B2 rubber foam sheet options for different project specifications, with multiple thicknesses and roll formats available.

Confirm supporting technical documents

Commercial HVAC projects may require supporting documentation during material approval. FUNAS rubber foam products have third-party documentation covering areas such as thermal conductivity, fire-related performance and product compliance for applicable specifications.

Available documentation includes ASTM, EN and other relevant test reports for selected rubber foam products. Buyers can review the FUNAS certifications and test reports and request the documents applicable to the product being quoted.

How to Measure Elastomeric Sheet Insulation for Large-Diameter Pipes

Accurate circumference measurement is one of the most important steps in large-pipe sheet fabrication. A correctly sized section should wrap around the pipe with its edges meeting naturally while maintaining the intended insulation thickness.

Start with the finished insulated diameter

For initial estimating, the finished outside diameter can be considered as the pipe outside diameter plus twice the selected insulation thickness.

Estimating principle: finished circumference ≈ π × (pipe OD + 2 × insulation thickness).

This is useful for early material planning. Before large quantities are cut, however, the calculated size should be checked against the actual pipe and the selected insulation sheet.

Use the selected insulation as a practical check

A practical field method is to use a strip of the selected sheet to check the finished circumference around the pipe. Because the actual insulation thickness is included in the measurement, this can help the fabricator confirm how the material sits around the real pipe.

The edges should meet cleanly without forcing the sheet into place or noticeably compressing the insulation.

Approve one section before batch fabrication

For repeated pipe sizes, produce one complete section before cutting the remaining material.

1. Measure the actual pipe.
2. Mark and cut one sheet section.
3. Dry fit it around the pipe.
4. Check thickness and edge alignment.
5. Bond the joint using the approved method.
6. Inspect the finished section.
7. Use the approved dimensions for subsequent fabrication.

This first-piece approach is especially useful where long runs of the same large pipe diameter are being insulated.

Step-by-Step Elastomeric Sheet Installation on Straight Pipe

1. Prepare the pipe surface

The pipe should be accessible, clean and dry before the insulation is fitted. Remove dust, oil and loose surface contamination that may interfere with fitting or bonding.

Make sure there is enough working clearance to position the sheet and complete the longitudinal joint without unnecessary distortion.

2. Mark and cut the sheet

Mark the required section clearly and make straight, clean cuts. Matching edges are easier to align and produce a neater longitudinal seam.

For long straight runs, plan section lengths before cutting so the installation does not depend on unnecessary small pieces.

3. Position the sheet evenly around the pipe

Wrap the section around the pipe while keeping the insulation thickness even around the circumference.

The material should sit naturally around the surface rather than being pulled tightly simply to make the edges meet. Keep the longitudinal edges aligned and accessible for bonding.

4. Bond the longitudinal seam

Use a compatible insulation adhesive according to the approved installation procedure. Bring the prepared edges together in alignment and complete the seam along the full fabricated section.

On large pipes, inspect each completed longitudinal joint before continuing with the next section.

5. Complete the butt joints

Where two fabricated sections meet, the circumferential butt joint should be cut square and fitted evenly around the pipe.

Both sections should maintain the required insulation thickness at the joint, with the adjoining edges forming a continuous insulation layer.

How Should Multi-Layer Elastomeric Insulation Be Installed?

Large chilled-water pipes may use multiple insulation layers where required by the approved total thickness, available sheet configuration or project specification.

Complete each layer before covering it

Each layer should form a complete and well-fitted insulation surface before the next layer is installed.

This gives the contractor an opportunity to inspect the inner layer before it is covered by subsequent material.

Stagger the longitudinal seams

The longitudinal seam of an outer layer should be positioned away from the seam in the layer beneath it. This avoids creating a single continuous joint line through the complete insulation build-up.

Offset the butt joints

The same principle applies to circumferential joints. Butt joints in successive layers should be offset rather than aligned through all layers.

The final arrangement should follow the approved project detail for the selected insulation system.

Fabricating Elbows, Tees, Valves and Pipe Transitions

Straight pipe is only one part of a chilled-water system. Large-pipe sheet insulation must also remain continuous through fittings, branches, supports and equipment connections.

Elbows and reducers

Elbows and reducers normally require fabricated pieces rather than a single rectangular wrap. Prepare the cutting pattern carefully so the pieces meet neatly and maintain the intended insulation thickness around the complete fitting.

Where identical fittings repeat throughout a project, an approved template can help standardize fabrication.

Tees and branches

Plan the complete cut layout before bonding individual pieces around tees and branches. A clean intersection with properly matched edges is preferable to constructing the area from many small offcuts.

Valves and flanges

Insulation around valves and flanges should provide complete coverage of the cold surface while respecting any maintenance access required by the project.

Where removable insulation is specified, the connection between the removable section and permanent pipe insulation should remain clean and continuous.

Transitions between sheet and preformed pipe insulation

A chilled-water project may use preformed pipe insulation on smaller branches and fabricated sheet on larger mains.

At the transition, match the finished insulation thickness and complete the joint around the full pipe circumference. Sheet and preformed pipe insulation can therefore be used together within the same project according to pipe dimensions and installation requirements.

Pipe supports and hangers

Support locations require coordinated insulation details because they form part of the complete chilled-water insulation system.

The transition between straight-run insulation and the support area should remain continuous and compatible with the project support design. For this detail, refer to the FUNAS guide on chilled water pipe support insulation.

Plain, Self-Adhesive or Aluminum-Faced Sheet?

The sheet configuration should be selected before ordering according to the project specification, installation environment and required surface finish.

Plain elastomeric sheet

Plain sheet is suitable for conventional fabricated insulation systems using compatible adhesive and the required joint-sealing or finishing system.

Self-adhesive elastomeric sheet

Self-adhesive sheet provides an adhesive-backed configuration for suitable clean and properly prepared surfaces. Confirm that this product form matches the installation specification before ordering.

Aluminum-faced elastomeric sheet

Aluminum-faced sheet can be selected where a project requires a faced surface, additional surface protection or a particular finished appearance.

FUNAS offers aluminum-faced rubber foam sheet configurations for applicable specifications. For a more detailed facing discussion, see when elastomeric insulation needs aluminum foil facing.

How to Estimate Sheet Quantity for Large Pipes

Material takeoff for large pipes should be based on fabricated sheet area rather than pipe length alone.

Calculate straight-run material by pipe diameter

For each pipe size, establish the finished circumference and multiply it by the insulated pipe length.

Where several insulation layers are required, calculate the layers separately because each outer layer has a larger finished circumference.

For each pipe size, record:

• Actual pipe OD
• Total straight-run length
• Required insulation thickness
• Sheet configuration
• Number of insulation layers
• Calculated sheet area

Match the cutting layout to the roll width

Roll width affects how efficiently pipe sections can be fabricated. Before ordering a large quantity, compare the required cut size with the available sheet width and roll length.

For repeated pipe sizes, a planned cutting layout can improve material utilization and make fabrication more consistent across the project.

Account for fittings separately

Straight-pipe area does not represent the complete material requirement. Include additional fabrication for:

• Elbows
• Tees and branches
• Reducers
• Valves
• Flanges
• Pipe-support transitions
• Equipment connections
• First-piece or mock-up fabrication

The required fabrication allowance depends on the actual piping layout, so it is more useful to calculate it from the project takeoff than to apply one fixed percentage to every installation.

Installation QA/QC Before Commissioning

A final inspection should confirm that the sheet installation is complete before the piping system enters normal service.

Material and dimensions:

• Correct sheet grade and configuration installed
• Required insulation thickness confirmed
• Fabrication based on the correct pipe OD
• First fabricated section approved where required

Straight-pipe workmanship:

• Insulation sits evenly around the pipe
• Longitudinal seams are aligned and completely closed
• Butt joints meet continuously around the circumference
• Insulation thickness remains consistent

Complex areas:

• Elbows, tees and reducers are completely insulated
• Valve and flange details are complete
• Sheet-to-tube transitions are properly finished
• Pipe-support transitions are complete
• Multi-layer joints are staggered where applicable

Final finish:

• Specified facing or protective finish is complete
• No unfinished joints or exposed cold surfaces remain
• Required inspection records are completed
• Installation photographs are recorded where required by the project

What Buyers Should Include in an RFQ

A supplier can review a large-diameter chilled-water project more accurately when the inquiry includes a pipe schedule, BOQ or marked-up drawing rather than only a request for rubber foam sheet.

Pipe and project information

• Pipe material
• Actual pipe OD or pipe schedule
• Total pipe length by diameter
• Indoor, exposed or outdoor installation
• Project destination

Insulation requirements

• Required insulation thickness
• Required B1 or B2 grade where specified
• Plain, self-adhesive or aluminum-faced sheet
• Single-layer or multi-layer construction
• Required adhesive and accessories

Fittings and fabrication quantities

• Number of elbows
• Number of tees and branches
• Number of reducers
• Number of valves and flanges
• Pipe-support quantity where relevant

Documentation and logistics

• Required technical or compliance documents
• Sample or mock-up requirement
• Packaging or labeling requirements
• Required delivery schedule

For projects with several pipe diameters, a marked-up pipe schedule makes it easier to review sheet dimensions, quantities and fabrication requirements together. It can also help identify where fabricated sheet and preformed pipe insulation can be combined within the same system.
