What Is Rubber Foam Insulation and Where Is It Used?
Rubber foam insulation is widely used around chilled-water pipes, refrigerant lines, HVAC ducts and equipment surfaces, but the material name does not define a complete specification. This guide explains how closed-cell flexible elastomeric foam works, when tube or sheet formats are appropriate, where its limitations begin, and which product data project buyers should verify before approval or quotation.
- Rubber Foam Insulation in One Definition
- How the Closed-Cell Structure Supports Thermal and Condensation Control
- Where Rubber Foam Insulation Is Commonly Used
- Chilled-Water, Refrigerant and Air-Conditioning Pipework
- HVAC Ductwork
- Large Pipes and Equipment Surfaces
- Applications That Need Further Review

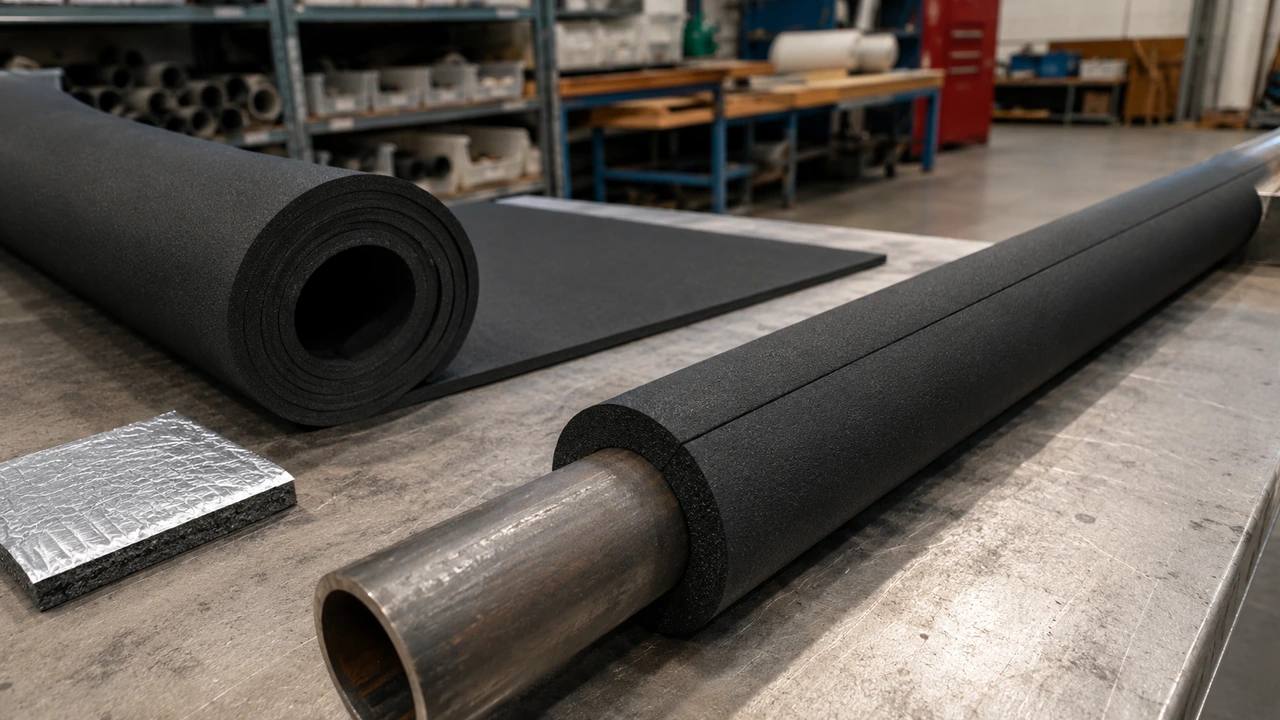

- Tube, Sheet, Roll and Faced Product Options
- Preformed Pipe Insulation
- Sheet and Roll Insulation
- Self-Adhesive Backing and Aluminum Foil Facing
- What the Material Name Does Not Tell You
- Information to Confirm Before Selecting or Quoting a Product
Rubber foam insulation is the trade term commonly used for flexible elastomeric foam installed around mechanical services. It is usually a flexible, closed-cell material supplied as preformed tubes, sheets or rolls for HVAC, refrigeration and selected industrial insulation work.
The name alone does not define a complete specification. It does not tell a buyer the thermal conductivity, water-vapor performance, service-temperature limits, fire classification or required thickness of a particular product. Those details must be checked for the exact grade, thickness, facing and test method.
Rubber foam insulation should also be distinguished from general foam rubber. Cushioning foam, acoustic foam, gasket material and packaging foam may use different polymers, cell structures and performance tests. For mechanical insulation, the more precise term is often flexible elastomeric foam (FEF).
Rubber Foam Insulation in One Definition
Flexible elastomeric foam is a factory-made insulation material based on rubber-like polymers. In HVAC markets, NBR/PVC formulations are common, while other elastomeric formulations are available for different service conditions. A product should not be identified only by appearance or by the word “rubber”; its technical data should state the material family and intended insulation use.
Its flexibility allows it to follow round pipes, rectangular ducts, bends and equipment surfaces more easily than many rigid insulation products. The material can be manufactured in different forms, but the two most common for mechanical systems are:
- Preformed tube insulation for pipes with a matching outside diameter.
- Sheet or roll insulation for ducts, large-diameter pipes, tanks, equipment casings and irregular surfaces.
These forms solve different installation problems. Tube insulation reduces the number of field-fabricated longitudinal joints on straight pipe runs. Sheet material is more adaptable where the surface is too large or too irregular for a preformed tube.
How the Closed-Cell Structure Supports Thermal and Condensation Control
In a closed-cell foam, the small cells are largely separated from one another rather than forming an open, connected pore network. Gas held inside the cells helps slow heat transfer, while the cell walls limit pathways through which water vapor can move.
This structure is useful on below-ambient systems, but it does not make condensation impossible. Condensation control depends on the outside surface of the insulation remaining above the local dew point. That result is influenced by operating temperature, ambient temperature, relative humidity, insulation thickness, surface emissivity and air movement.
System continuity matters just as much. Longitudinal seams, butt joints, fittings, valves, supports and termination points must be treated so that humid air cannot reach a cold pipe or equipment surface. A closed-cell material with open joints or damaged sections is not a continuous vapor-control system.
For specification and troubleshooting, separate three levels of performance:
- Material performance: the polymer formulation and cellular structure.
- Product performance: the tested conductivity, water-vapor properties, temperature range, dimensional tolerances and fire data for a specific product.
- Installed-system performance: the result after thickness selection, joint sealing, adhesive use, support detailing, protective finishes and workmanship are considered together.
Where Rubber Foam Insulation Is Commonly Used
Chilled-Water, Refrigerant and Air-Conditioning Pipework
Preformed rubber foam tubes are commonly considered for cold pipework where heat gain and surface condensation must be controlled. Typical examples include chilled-water lines, refrigerant piping and air-conditioning connections. The tube inside diameter must match the pipe outside diameter, while the wall thickness must be selected from the actual service and ambient conditions.
Elbows, tees, valves, flanges and pipe supports require separate detailing. Using the correct tube on straight pipe does not resolve vapor leakage at an unsealed fitting or compression at a support.
HVAC Ductwork
Flexible sheet or roll insulation can be fitted around rectangular and round duct surfaces. The required product and thickness depend on whether the duct carries conditioned air, its location, the surrounding humidity, the fire and smoke requirements, and whether the insulation is installed externally or as part of another tested assembly.
A flexible sheet should not automatically be treated as an internal duct liner. Internal air-stream applications can introduce additional fire, smoke, hygiene, erosion and acoustic requirements that need product-specific documentation.
Large Pipes and Equipment Surfaces
Sheet material is also used where a preformed tube is impractical, including large-diameter pipework, tanks, vessels and equipment casings. Curvature, surface preparation, joint layout, adhesive coverage and support geometry affect the finished system. On cold surfaces, gaps behind the insulation can create routes for humid air and should be addressed in the installation method.
Applications That Need Further Review
Do not assume that a standard rubber foam product is suitable for direct outdoor exposure, high-temperature service, contact with oils or chemicals, buried service, heavy mechanical loading or a project-specific fire requirement. These conditions may require a different elastomeric formulation, a protective coating or jacket, another insulation material, or a tested system rather than bare foam.
Tube, Sheet, Roll and Faced Product Options
Preformed Pipe Insulation
Pipe insulation should be ordered by the pipe outside diameter or by the insulation inside diameter, together with the required wall thickness. Nominal pipe size alone can be ambiguous because pipe materials and standards use different actual outside diameters.
Pre-slit or field-slit tubes require a compatible closure method. Straight seams and butt joints should be bonded or sealed according to the product and adhesive instructions; tape placed over an unbonded joint should not be assumed to provide the same vapor continuity.
Sheet and Roll Insulation
Sheet and roll products are selected by thickness, width, roll length and any backing or facing. They can be cut for ducts, large pipes, fittings and equipment surfaces, but field fabrication creates joints that must be planned rather than added wherever material happens to meet.
For multi-layer systems, joint staggering and the treatment of terminations should be defined in the installation specification. The need for full-surface adhesion, mechanical support or an outer finish depends on the substrate, orientation and service conditions.
Self-Adhesive Backing and Aluminum Foil Facing
Self-adhesive backing can simplify positioning on clean, compatible surfaces, but it is an installation option rather than a substitute for checking adhesive service limits, substrate preparation and joint sealing. Butt joints and complex fittings may still require a separate compatible adhesive.
Aluminum foil facing can provide a finished surface or form part of a protection strategy. It does not, by itself, prove outdoor durability, fire classification or resistance to mechanical damage. The facing, overlap, joint treatment and exposure conditions should be reviewed as a system.
FUNAS product materials list rubber foam in both sheet and pipe forms. The catalogue includes regular sheet thicknesses from 5 mm to 30 mm across the listed ranges, together with self-adhesive and aluminum foil options. These catalogue entries are starting points for product review, not a substitute for confirming the exact grade, dimensions and supporting documents for an order.
What the Material Name Does Not Tell You
| Specification question | What to verify | Why it matters |
|---|---|---|
| What is the exact product? | Material formulation, product form, grade, thickness and facing | Different elastomeric products can have different service limits and test results. |
| What is its thermal performance? | Thermal conductivity, declared or tested mean temperature, and test method | A conductivity value cannot be compared correctly without its temperature and test conditions. |
| How does it manage water vapor? | Water-vapor permeability or permeance, test method, thickness and joint requirements | Condensation control depends on both the product data and the continuity of the installed system. |
| Can it handle the service temperature? | Minimum and maximum use temperatures for the exact product and adhesive system | The foam, backing, adhesive and facing may have different limits. |
| What fire evidence applies? | Test standard, classification, specimen thickness, facing, report number and market | Ratings from different standards are not automatically equivalent. |
| Will it fit the component? | Pipe outside diameter, insulation inside diameter, wall thickness, sheet width and roll length | A nominal description can lead to poor fit, compressed insulation or excessive field joints. |
| Does the exposure require protection? | Indoor or outdoor location, UV, weather, cleaning, chemicals, impact and jacketing requirements | Bare foam, a foil facing and a complete protective system are not the same specification. |
Product standards can help define what should appear in the technical file. For example, ASTM C534/C534M covers preformed flexible elastomeric cellular thermal insulation in sheet and tubular form, while EN 14304 covers factory-made flexible elastomeric foam products for building equipment and industrial installations. A claim of compliance still needs to be matched to the exact product, grade, thickness and supporting report.
Information to Confirm Before Selecting or Quoting a Product
Before requesting a price, prepare a technical input set that allows the supplier to review the actual application:
- Application: pipe, duct, tank, vessel, equipment casing or fabricated fitting
- Pipe outside diameter, duct dimensions or surface geometry
- Required insulation thickness, or the design conditions needed to calculate it
- Operating temperature and whether the service is continuous or intermittent
- Ambient temperature, relative humidity, air movement and indoor or outdoor exposure
- Required fire, smoke, building-code or market documentation
- Product form, self-adhesive backing, facing, color or protective-finish requirements
- Quantity, package preference, delivery destination and project schedule
- Required technical data sheet, test report, declaration or certificate
A quotation based only on “rubber foam insulation” cannot confirm whether the size, thickness, fire evidence or moisture-control design is suitable. The same material family may be supplied in several grades and configurations, and the required documentation can vary by market.
For a FUNAS product review, send the application, dimensions, thickness, operating and ambient conditions, quantity, destination and required test document. These inputs allow the available pipe or sheet format to be checked against the project before a quotation is finalized. Outdoor exposure, persistent high humidity and project-specific fire requirements should be stated explicitly rather than left for the supplier to infer.
