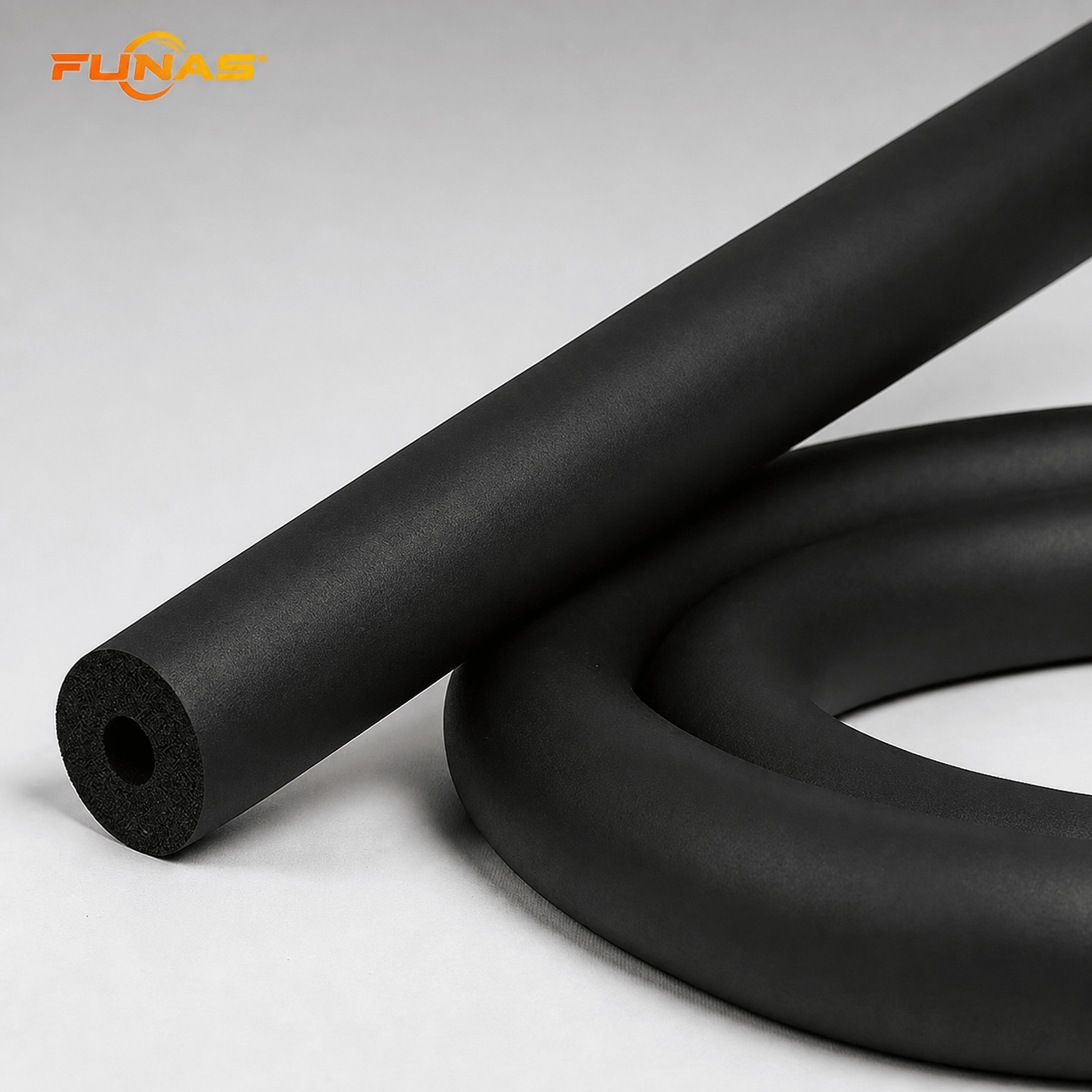

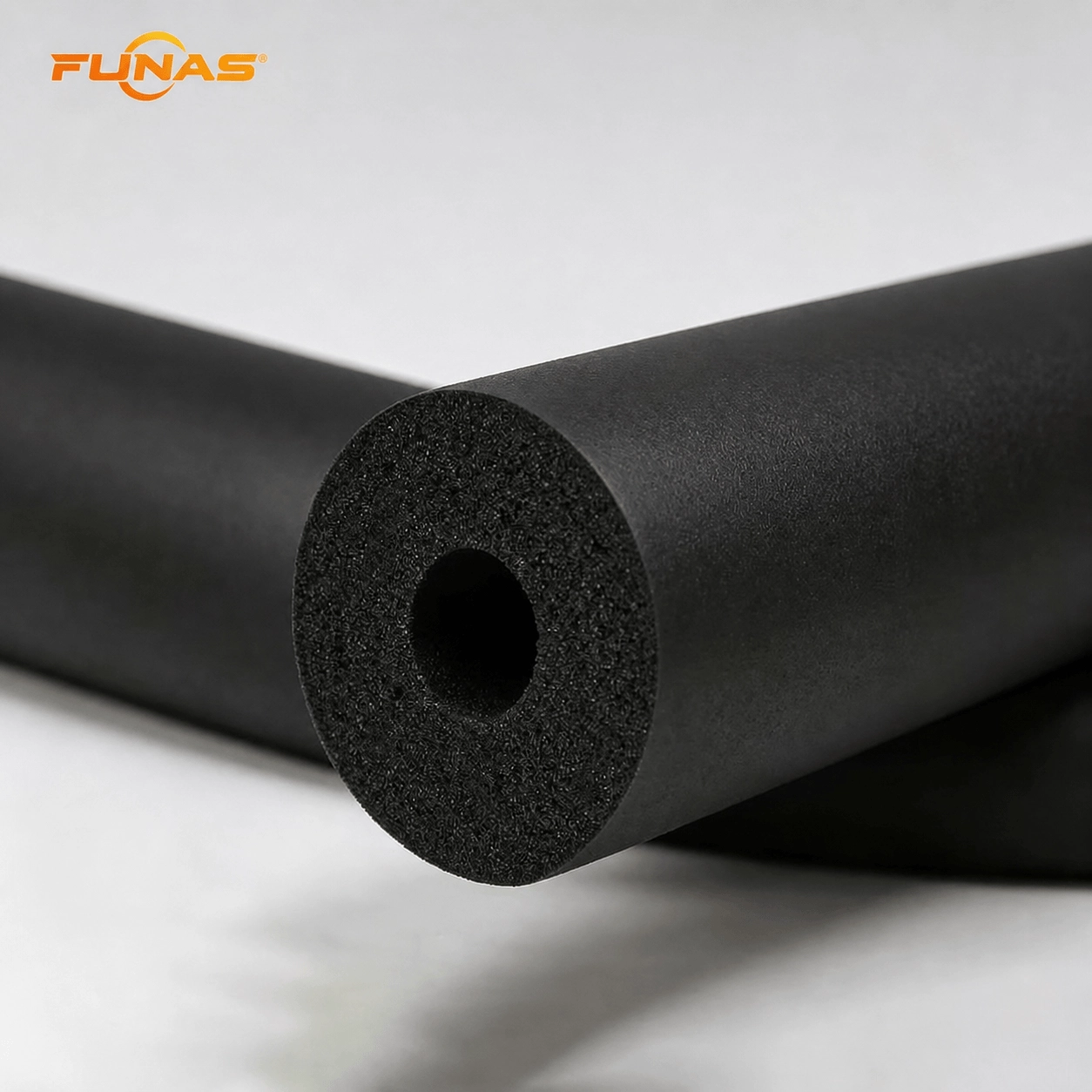

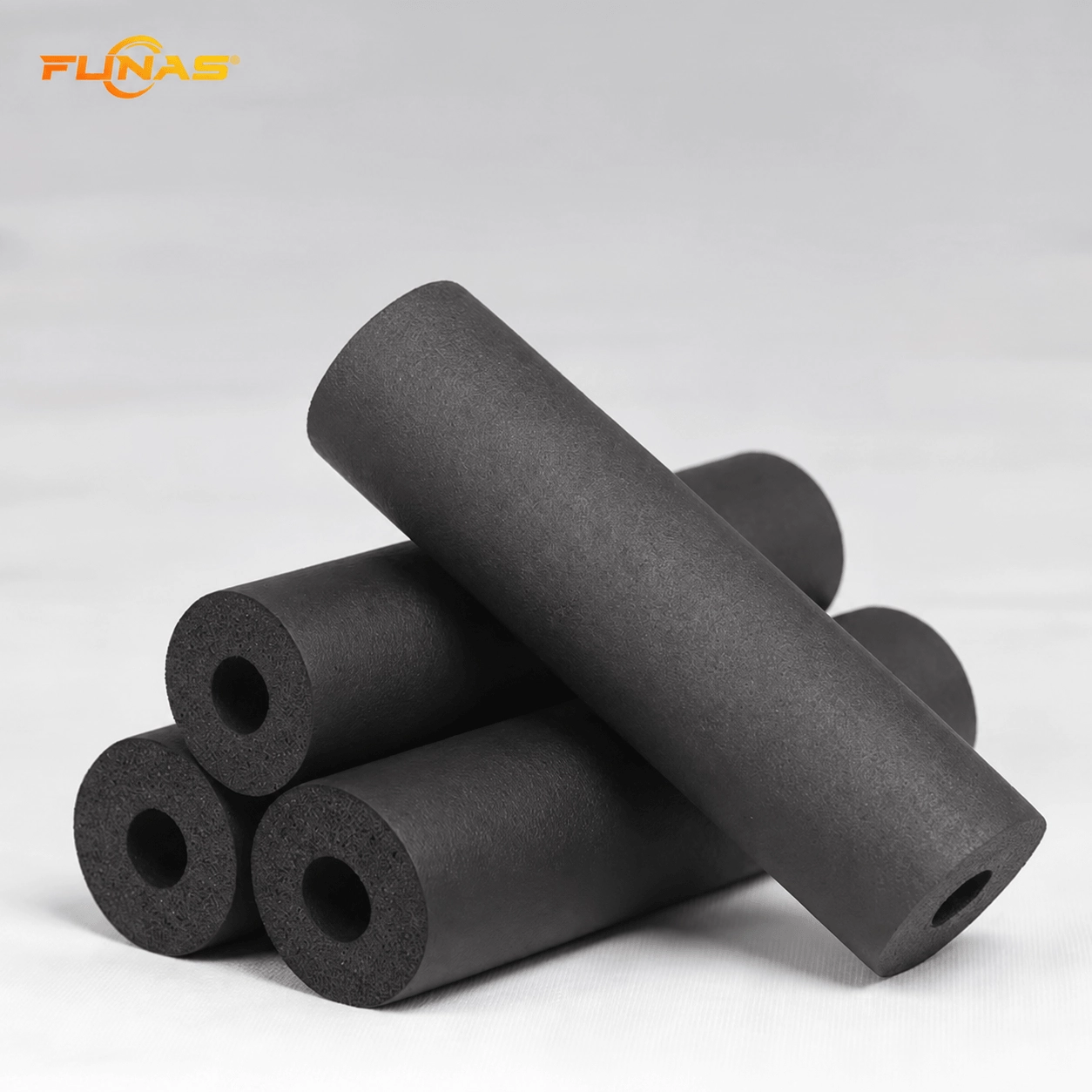

NBR/PVC Rubber Pipe Insulation for HVAC & Refrigeration

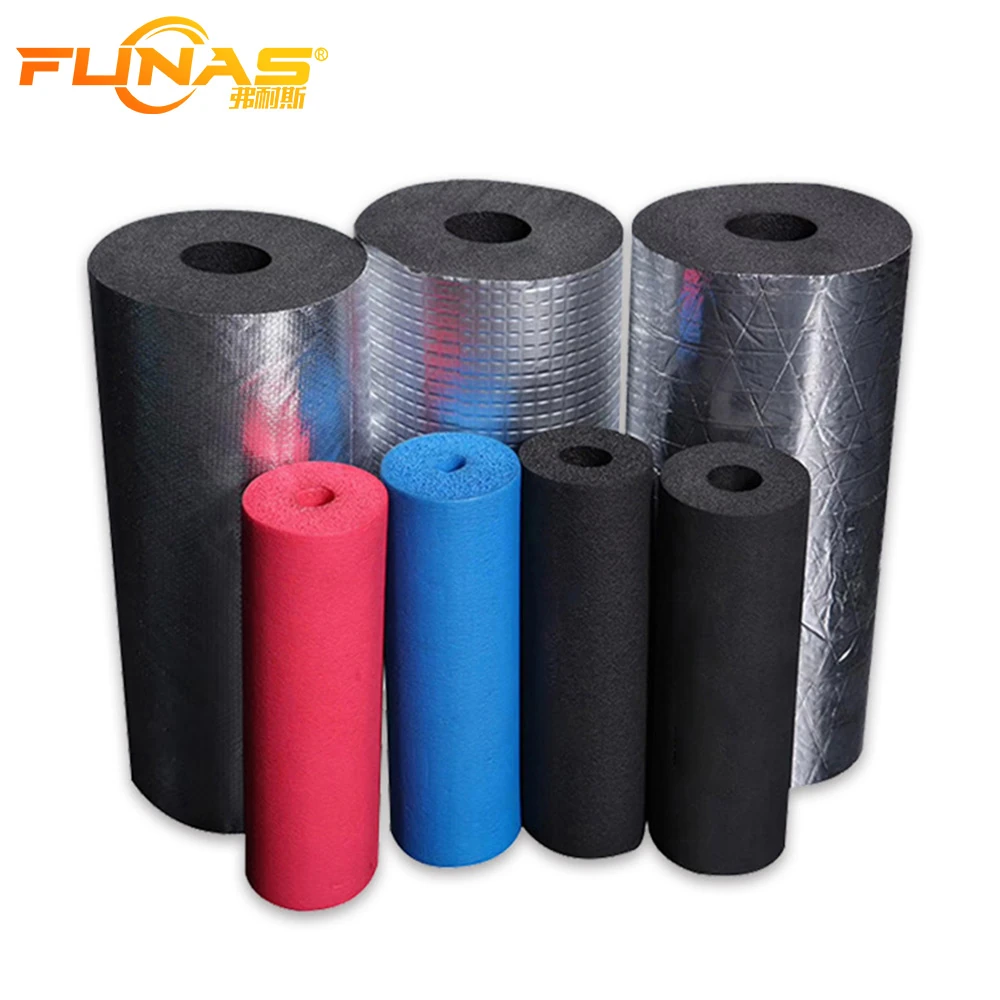

FUNAS is a direct manufacturer of NBR/PVC rubber foam pipe insulation for HVAC, chilled-water, refrigeration and other insulated piping systems. Standard, pre-slit, self-adhesive and aluminum foil-faced options are available to suit different installation requirements.
NEED RUBBER FOAM PIPE INSULATION?
Tell us your pipe OD, insulation thickness, grade, quantity and application. We’ll confirm the available FUNAS specification and configuration for your project.

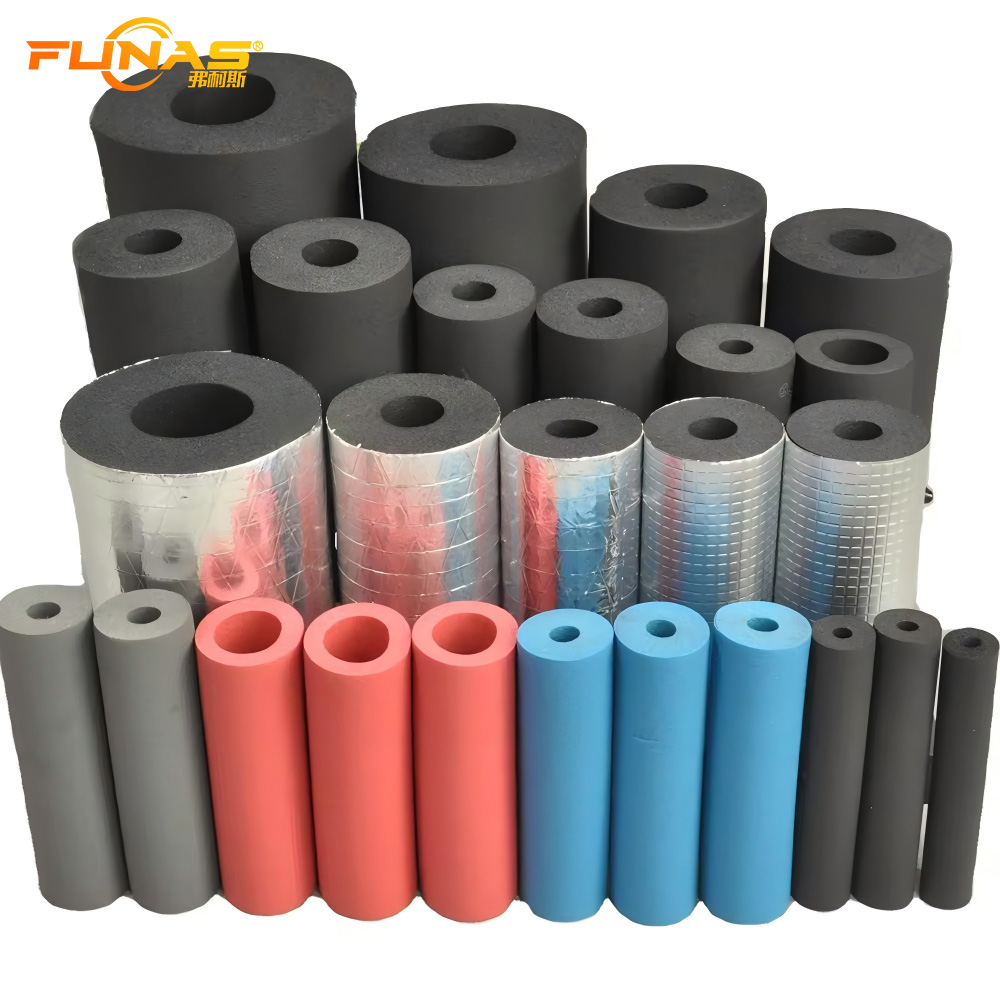

Rubber Pipe Insulation Sizes & Configurations
FUNAS rubber pipe insulation is available in multiple inner-diameter and wall-thickness combinations for HVAC, refrigeration and mechanical piping applications.
When selecting a size, match the insulation inner diameter to the actual pipe outside diameter. Not every inner diameter is available in every thickness, so the required combination should be confirmed before ordering.
Custom sizes and colors are also available subject to production confirmation.
Standard Size Range
| Wall Thickness | Standard Inner Diameters | Length |
|---|---|---|
| 9 mm | 6, 10, 13, 16, 19, 25, 32, 43, 51, 60 mm | 1.8 m |
| 13 mm | 6, 10, 13, 16, 19, 25, 34, 43, 48 mm | 2.0 m |
| 15 mm | 6, 10, 13, 16, 19 mm | 2.0 m |
| 20 mm | 6, 10, 13, 16, 19, 22, 25, 28, 34, 43, 48, 60 mm | 2.0 m |
| 25 mm | 25, 28, 34, 43, 48 mm | 2.0 m |
| 30 mm | 22, 25, 28, 34, 43, 48, 60, 76, 89, 108 mm | 2.0 m |
Custom dimensions are subject to production confirmation.
HVAC, Refrigeration & Chilled Water Pipe Insulation
FUNAS closed-cell NBR/PVC elastomeric pipe insulation is suitable for a range of HVAC and mechanical piping applications, including:
• HVAC and air-conditioning piping
• Chilled-water systems
• Refrigerant and refrigeration lines
• Hot and cold mechanical piping
• Equipment and piping connections
-
For cold piping systems, insulation thickness and joint sealing should be selected according to the actual operating temperature, ambient conditions and project requirements.
Selecting Rubber Pipe Insulation for HVAC & Refrigeration
For specification confirmation, provide the pipe outside diameter, required insulation thickness, operating conditions and B1/B2 grade.
The required insulation thickness should be selected according to the actual piping system and project conditions rather than using one standard thickness for every application.
During installation:
• Seal longitudinal and butt joints continuously.
• Cut and fit the insulation carefully around elbows, tees, valves and fittings.
• Maintain insulation continuity at pipe supports.
• Avoid stretching the material during installation.
• Stagger joints when multiple insulation layers are used.
-

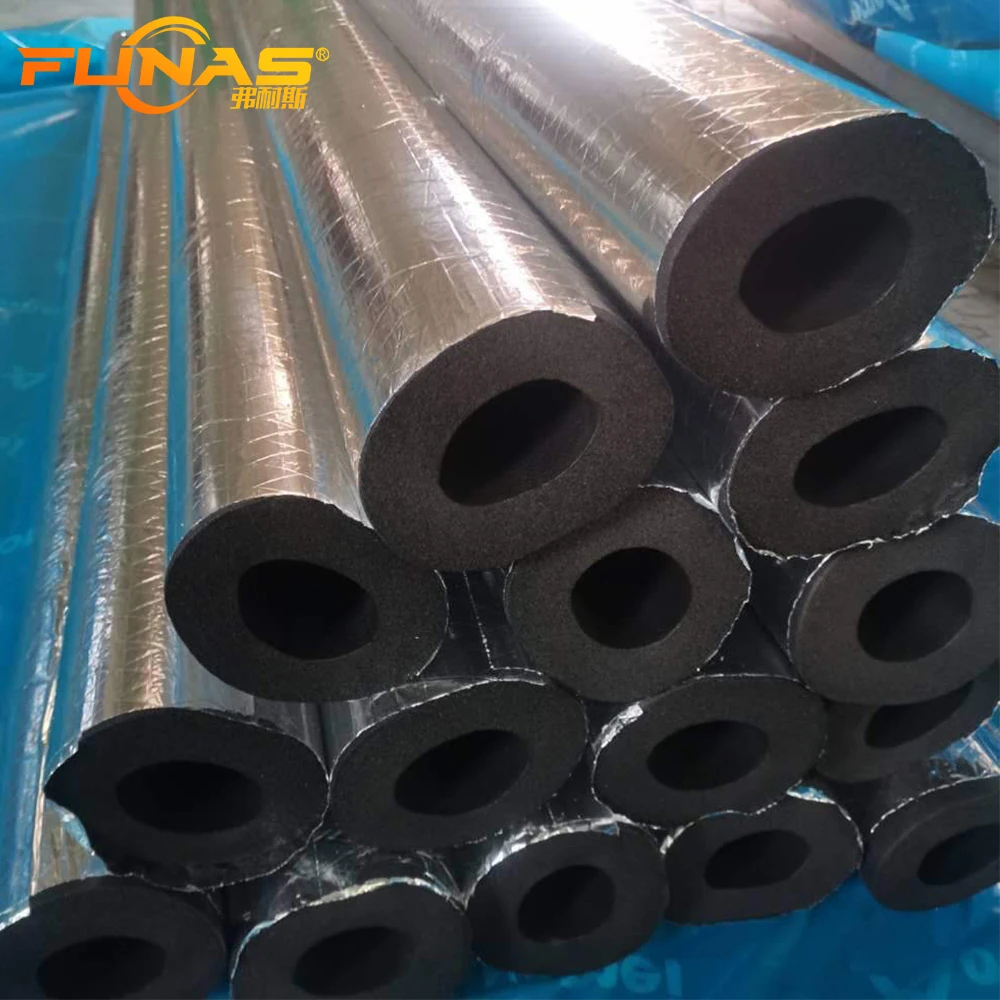

For outdoor installations, use a suitable protective facing or weather-resistant covering. Aluminum foil-faced rubber pipe insulation is available as an optional configuration.
NBR/PVC Elastomeric Pipe Insulation Technical Data
| Property | Reference Value |
|---|---|
| Product Type | NBR/PVC Rubber Foam Pipe |
| Structure | Flexible Closed-Cell Foam |
| B1 Density | 44 kg/m³ |
| Thermal Conductivity at -20°C | 0.034 W/(m·K) |
| Thermal Conductivity at 0°C | 0.036 W/(m·K) |
| Thermal Conductivity at 25°C | 0.038 W/(m·K) |
| B1 Fire Performance | B1 |
| Standard Thickness | 9 / 13 / 15 / 20 / 25 / 30 mm |
| Standard Inner Diameter | 6–108 mm |
| Standard Length | 1.8 m / 2.0 m |
Technical values are based on the applicable FUNAS rubber foam pipe specification.
Testing & Documentation
Applicable technical and compliance documents are available for FUNAS NBR/PVC rubber foam insulation, including EN 14304:2015, RoHS, ASTM C518 and ASTM E84 supporting documentation.
Document scope and test results depend on the applicable product, grade and tested specimen.
Contact FUNAS for the test reports and compliance documents applicable to your required rubber pipe insulation specification.
Rubber Pipe Insulation for Project & Bulk Supply
FUNAS manufactures NBR/PVC rubber foam pipe insulation for distributors, contractors and project procurement requirements.

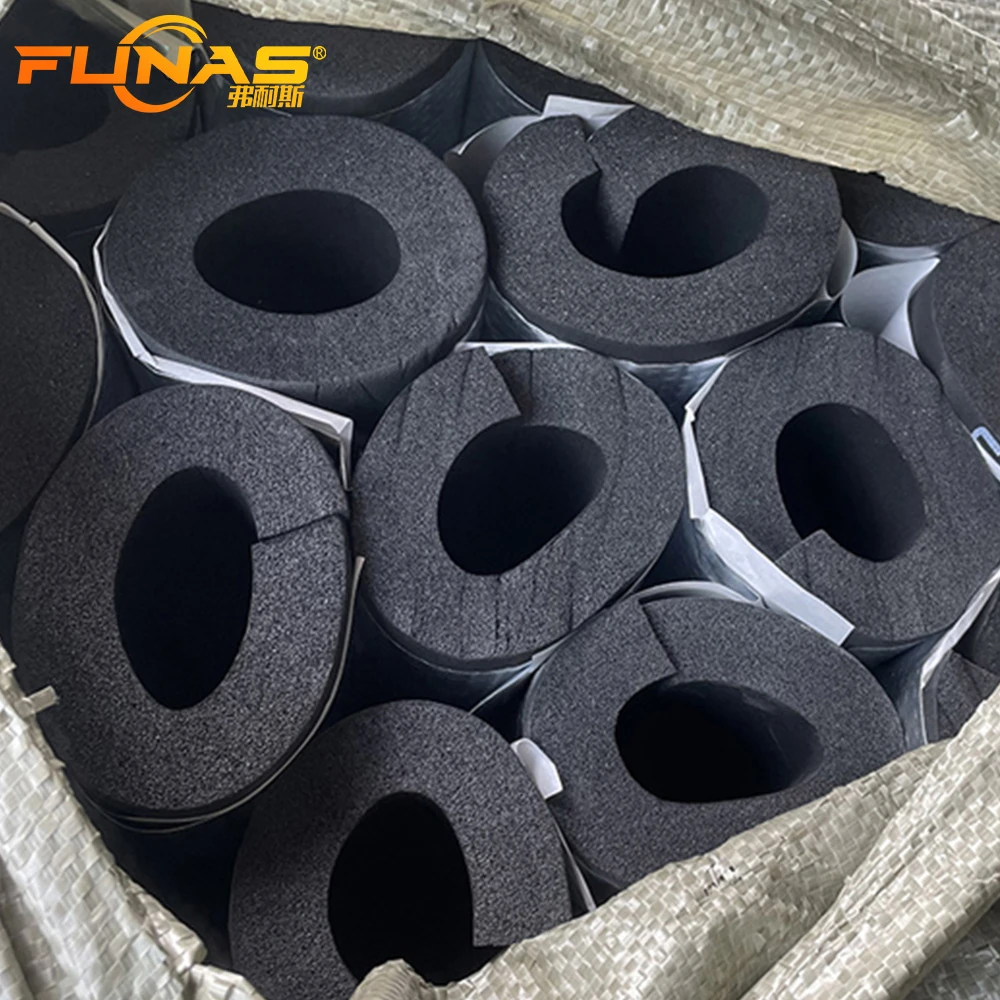

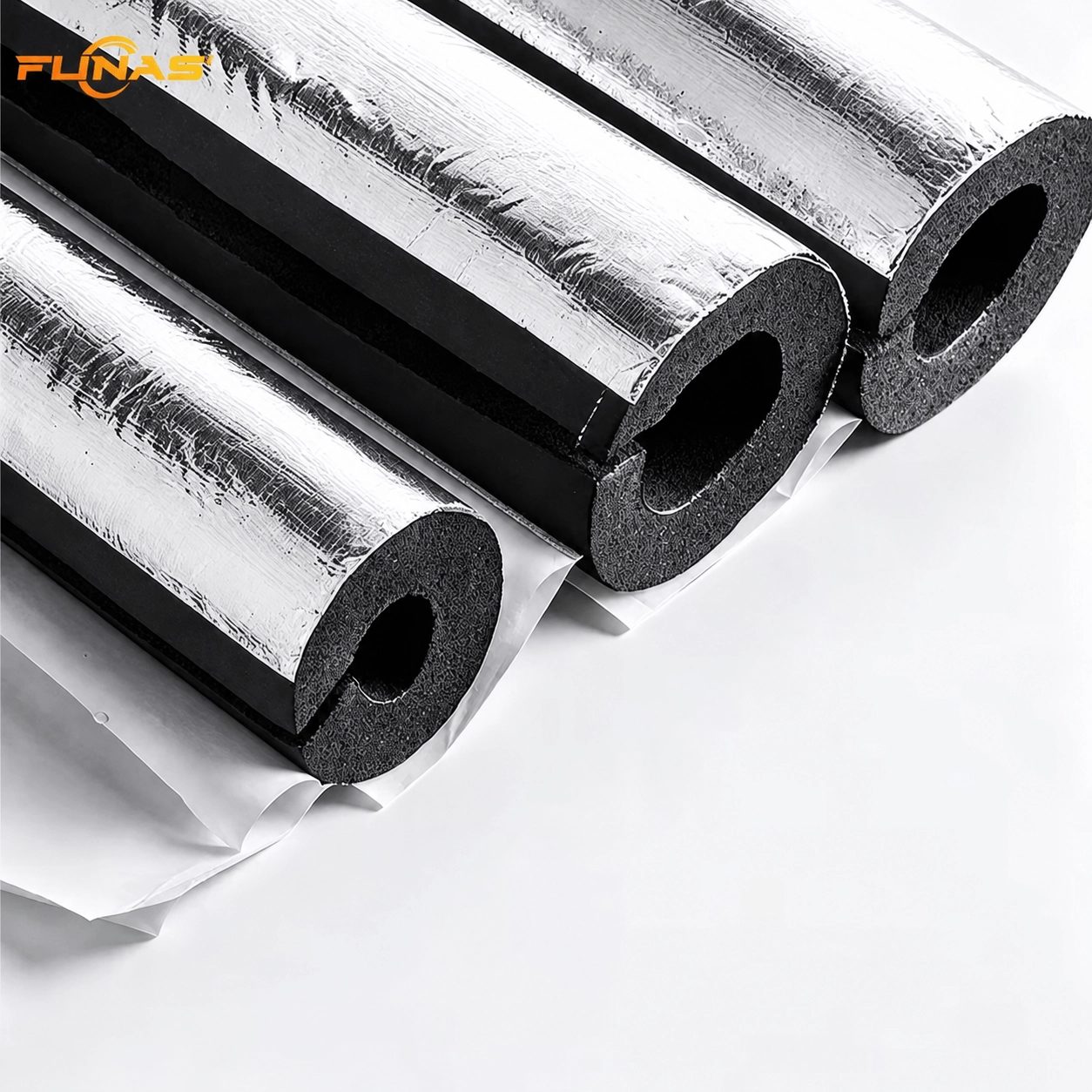

Standard and custom configurations are available with different inner diameters, insulation thicknesses, B1/B2 grades and surface options. Plain, pre-slit, self-adhesive and aluminum foil-faced products can be supplied according to the required installation method.
For project confirmation, send us the pipe OD, insulation thickness, quantity, application and required grade. Samples and applicable technical documents can also be provided before bulk ordering.
